Weidmuller

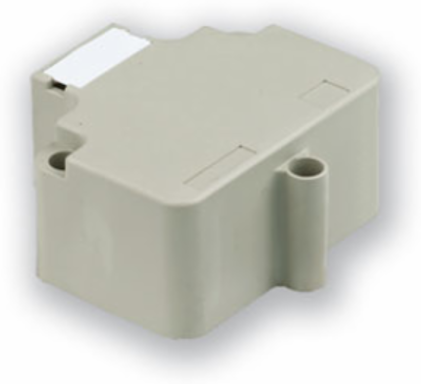

Weidmuller 1783460000 SAI-4/6/8-MH LEER

  • MPN: 1783460000
  • PPN: WDM-1783460000

CAD

$19.61

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Sensor-actuator passive distributor, Hood version, No

Documentation & Downloads

Specifications

Approvals

ApprovalsEAC
ROHSConform

Technical Data Cable

Suitable for cable carriersNo
Conductor O.D., max.12 mm
Conductor O.D., min.6 mm

Dimensions And Weights

Width59.2 mm
Height32.5 mm
Depth57 mm
Net weight43 g
Width (inches)2.331 inch
Height (inches)1.28 inch
Depth (inches)2.244 inch

Electrical Data

Rated voltage, min.10 V
Max. current-carrying capacity per slot4 A
Rated voltage, max.30 V

Connection Data

Conductor O.D., min.6 mm
Cable glandsM 20
Conductor O.D., max.12 mm
Distributor outletHood version

General Technical Data

Protection degreeIP68
LEDNo
Pollution severity3

Material Data

Material of distributorPlastic
Contact surfaceGold-plated
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)

Classifications

ETIM 6.0EC002585
eClass 9.027-44-01-08
eClass 10.027-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.90 °C
Operating temperature-20 - 90°C
Operating temperature, min.-20 °C
SAI-4/6/8-MH LEER
