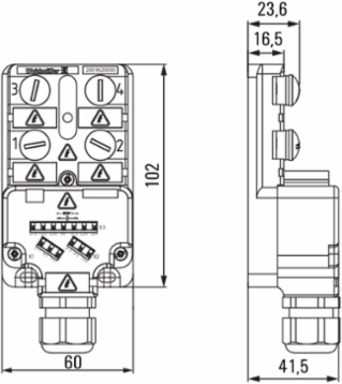

Weidmuller 2009620000 SAI-4-M-MVV-M12 1:1
- MPN: 2009620000
- PPN: WDM-2009620000
CAD
$659.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

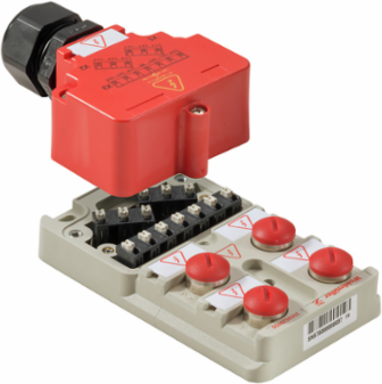

Power distributor, M12, Hood version, Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Technical Data Cable
| Suitable for cable carriers | No |
|---|---|
| Conductor O.D., min. | 10 mm |
| Number of poles | 4 |
|---|---|
| Conductor O.D., max. | 14 mm |
Dimensions And Weights
| Net weight | 100 g |
|---|
Electrical Data
| Rated voltage, max. | 400 V |
|---|---|
| Total current | 144 A |
| Electrical isolation available | No |
| Max. current-carrying capacity per slot | 36 A |
|---|---|
| Current per signal | 12 A |
Connection Data
| Conductor O.D., min. | 10 mm |
|---|---|
| Sheathing stripping length | 40 mm |
| Clamping range, min. | 0.2 mm² |
| Storage space | Standard |
| Connection type PE | Screw connection |
| Conductor O.D., max. | 14 mm |
|---|---|
| Cable glands | M 20 |
| Clamping range, max. | 1.5 mm² |
| Distributor outlet | Hood version |
General Technical Data
| Protection degree | IP68 |
|---|---|
| Number of contact sockets | 4 |
| Pollution severity | 3 |
| Plugging cycles | ≥ 50 |
| LED colour for indicating operation | No |
| Number of poles | 4 |
|---|---|
| Connection thread | M12 |
| Fire behaviour | V-0 |
| LED | Yes |
Material Data
| Housing main material | Pocan |
|---|---|
| Housing colour | grey, RAL 7032 |
| Screw socket | Nickel-plated CuZn |
| Contact surface | Gold-plated |
| Material of distributor | Plastic |
|---|---|
| Hood sealing material | Viton |
| Contact material | CuZn |
| Contact carrier material | PBT (UL 94 V0) |
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Operating temperature | -20 - 80°C |
| Operating temperature, min. | -20 °C |
|---|
