Weidmuller

Weidmuller 2495280000 SAI-4-SVV-GM-RM-M12

  • MPN: 2495280000
  • PPN: WDM-2495280000

CAD

$662.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

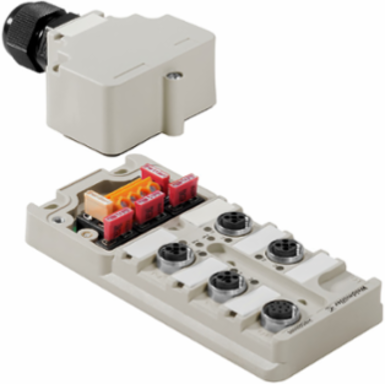

Power distributor, M12, Hood version, Yes

Documentation & Downloads

Specifications

Approvals

ROHSConform

Technical Data Cable

Suitable for cable carriersNo
Conductor O.D., min.6 mm
Number of poles4
Conductor O.D., max.12 mm

Dimensions And Weights

Net weight100 g

Electrical Data

Rated voltage, min.10 V
Max. current-carrying capacity per slot10 A
Current per signal10 A
Potential responseYes
Rated voltage, max.48 V
Total current32 A
Insulation strength108 Ω

Connection Data

Conductor O.D., min.6 mm
Cable glandsM 20
Clamping range, max.4 mm²
Conductor O.D., max.12 mm
Clamping range, min.0.5 mm²
Distributor outletHood version

General Technical Data

Protection degreeIP68
Number of contact sockets4
Pollution severity3
Plugging cycles≤ 50
LED initiatorYes
LED colour for I/O functionyellow
Number of poles4
Connection threadM12
Fire behaviourV-0
LEDYes
LED colour for indicating operationyellow

Material Data

Housing main materialPocan
Housing colourgrey, RAL 7032
Screw socketNickel-plated CuZn
Contact surfaceGold-plated
Material of distributorPlastic
Hood sealing materialViton
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)

Classifications

ETIM 6.0EC002585
eClass 9.027-44-01-08
eClass 10.027-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.80 °C
Operating temperature-20 - 80°C
Operating temperature, min.-20 °C
SAI-4-SVV-GM-RM-M12
SAI-4-SVV-GM-RM-M12
SAI-4-SVV-GM-RM-M12
