Weidmuller 1897681000 SAI-4-MMS 5P M12 1:1 UT
- MPN: 1897681000
- PPN: WDM-1897681000
CAD
$329.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

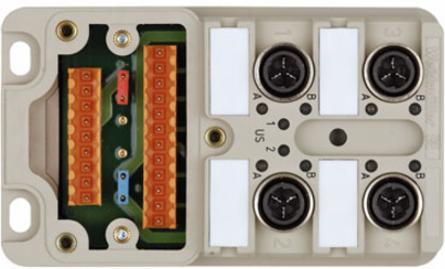

SAI Passive, Sensor-actuator passive distributor, M12, Hood version, No
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Technical Data Cable
| Suitable for cable carriers | No |
|---|---|
| Conductor O.D., min. | 10 mm |
| Number of poles | 5 |
|---|---|
| Conductor O.D., max. | 14 mm |

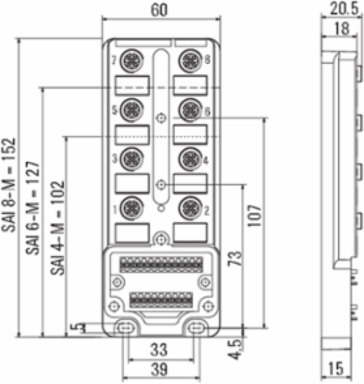

Dimensions And Weights
| Width | 60 mm |
|---|---|
| Height | 20.5 mm |
| Depth | 152 mm |
| Net weight | 340 g |
| Width (inches) | 2.362 inch |
|---|---|
| Height (inches) | 0.807 inch |
| Depth (inches) | 5.984 inch |
Standards
| Certificate No. (cURus) | E141197 |
|---|
Electrical Data
| Rated voltage, min. | 10 V |
|---|---|
| Max. current-carrying capacity per slot | 4 A |
| Insulation strength | 109 Ω |
| Rated voltage, max. | 30 V |
|---|---|
| Total current | 10 A |
Connection Data
| Conductor O.D., min. | 10 mm |
|---|---|
| Distributor outlet | Hood version |
| Conductor O.D., max. | 14 mm |
|---|
General Technical Data
| Protection degree | IP68 |
|---|---|
| Number of contact sockets | 4 |
| Pollution severity | 3 |
| LED | No |
| Number of poles | 5 |
|---|---|
| Connection thread | M12 |
| Fire behaviour | V-0 |
| LED initiator | No |
Material Data
| Housing main material | Zinc diecast |
|---|---|
| Contact material | CuZn |
| Hood sealing material | Polyurethane foamed |
|---|---|
| Contact surface | Gold-plated |
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
Product Information
| Product information | Complete continuity of shielded transmission through the distributor housing. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -20 - 70°C |
| Operating temperature, min. | -20 °C |
|---|
