Weidmuller 1051760000 SAI-4-S 3P M8 L OL
- MPN: 1051760000
- PPN: WDM-1051760000
CAD
$156.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

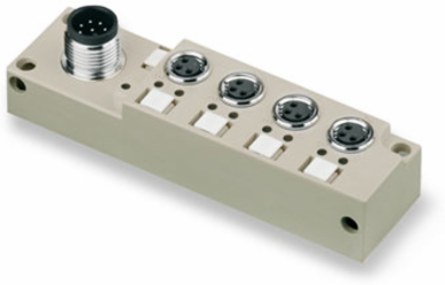

SAI Passive, Sensor-actuator passive distributor, M8, with M12 outlet, 8-pole, A-coded, No
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Technical Data Cable
- Suitable for cable carriers
- No
Number of poles3

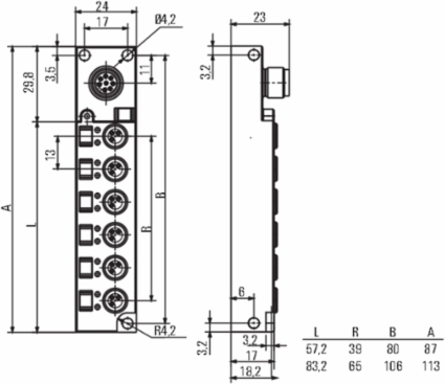

Dimensions And Weights
- Width
- 24 mm
- Height
- 18.2 mm
- Depth
- 113 mm
- Net weight
- 64 g
Width (inches)0.945 inch
Height (inches)0.717 inch
Depth (inches)4.449 inch
Electrical Data
- Rated voltage, min.
- 15 V
- Max. current-carrying capacity per slot
- 2 A
- Insulation strength
- 109 Ω
Rated voltage, max.30 V
Total current2 A
Connection Data
- Distributor outlet
- with M12 outlet, 8-pole, A-coded
General Technical Data
- Protection degree
- IP68
- Number of contact sockets
- 4
- Pollution severity
- 3
Number of poles3
Connection threadM8
LEDNo
Material Data
- Contact material
- CuZn
Contact surfaceGold-plated
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -20 - 70°C
Operating temperature, min.-20 °C
