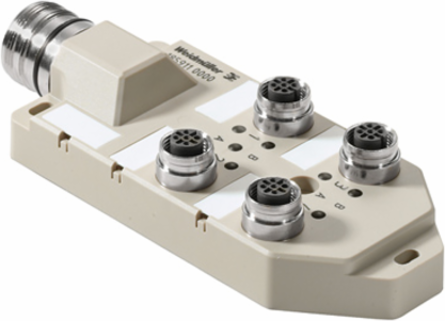

Weidmuller 1859130000 SAI-4-SH 5P FC
- MPN: 1859130000
- PPN: WDM-1859130000
CAD
$173.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI-4-SH 5P FC
Specifications
General Data
| Number of contact sockets | 4 |
|---|---|
| connection thread | M12 |
| Protection degree | IP67 |
| Distributor outlet | with M23 outlet, 19-polig |
| Rated voltage , max. | 30 V |
| Electrical isolation available | No |
| Current per signal | 2 A |
| Max. current-carrying capacity per slot | 4 A |
| Housing colour | grey, RAL 7032 |
| Contact material | CuZn |
| Contact carrier material | PBT (UL 94 V0) |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| Fire behaviour | V-0 |
|---|---|
| No. of poles | 4 |
| Pollution severity | 3 |
| Insulation resistance | 10 |
| Rated voltage , min. | 10 V |
| Test voltage | 1 kV |
| Total current | 9 A |
| Housing main material | PA 6 GF |
| Screw socket | CuZn, nickel-plated |
| Contact surface | Gold-plated |
| Sheathing stripping length | 100 mm |
| LED | Yes |
| LED colour for I/O function | yellow |
Approvals
| Approvals | CURUS |
|---|---|
| ROHS | Conform |
| Approvals | EAC |
|---|---|
| UL File Number Search | E92202 |

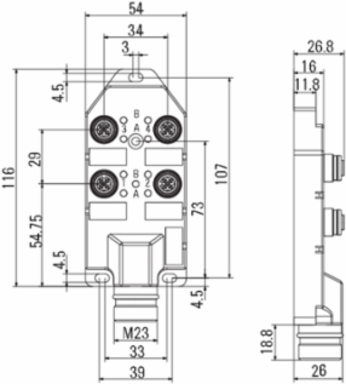

Dimensions And Weights
| Width | 54 mm |
|---|---|
| Height | 34.3 mm |
| Net weight | 201 g |
| Width (inches) | 2.126 inch |
|---|---|
| Height (inches) | 1.35 inch |
Standards
| Certificate No. (cURus) | E92202 |
|---|
General Ordering Data
| Type | SAI-4-SH 5P FC |
|---|---|
| Version | Sensor-actuator passive distributor, Push-Pull, M12, with M23 outlet, *UNDEFINED TEXT*, Yes |
| Qty. | 1 pc(s). |
| Order No. | 1859130000 |
|---|---|
| GTIN (EAN) | 4032248411085 |
Classifications
| ETIM 3.0 | EC001856 |
|---|---|
| ETIM 5.0 | EC002585 |
| UNSPSC | 30-21-18-01 |
| eClass 7.1 | 27-06-91-90 |
| eClass 9.0 | 27-06-91-90 |
| ETIM 4.0 | EC002585 |
|---|---|
| ETIM 6.0 | EC002585 |
| eClass 6.2 | 27-06-91-90 |
| eClass 8.1 | 27-06-91-90 |
| eClass 9.1 | 27-44-01-08 |
Temperatures
| Operating temperature range, max. | 80 °C |
|---|---|
| Operating temperature | -25 - 80°C |
| Operating temperature range, min. | -25 °C |
|---|
