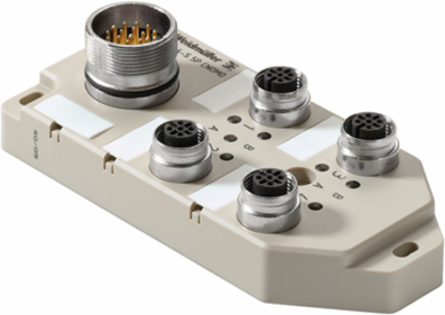

Weidmuller 1847960000 SAI-4-S 4P FC 1993
- MPN: 1847960000
- PPN: WDM-1847960000
CAD
$142.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor-actuator passive distributor, Push-Pull, M12, with M23 outlet, 12-pole, Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E92202 |
| ROHS | Conform |
|---|
Technical Data Cable
| Suitable for cable carriers | No |
|---|
| Number of poles | 4 |
|---|

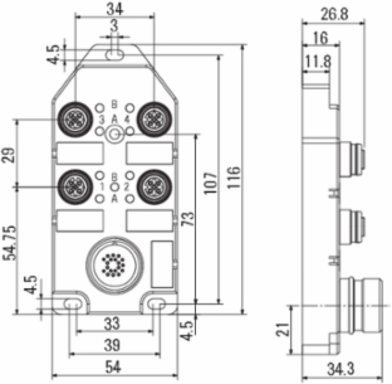

Dimensions And Weights
| Width | 54 mm |
|---|---|
| Height | 34.3 mm |
| Depth | 116 mm |
| Net weight | 179 g |
| Width (inches) | 2.126 inch |
|---|---|
| Height (inches) | 1.35 inch |
| Depth (inches) | 4.567 inch |
Standards
| Certificate No. (cURus) | E92202 |
|---|
Electrical Data
| Rated voltage, min. | 10 V |
|---|---|
| Test voltage | 1 kV |
| Total current | 9 A |
| Electrical isolation available | No |
| Rated voltage, max. | 30 V |
|---|---|
| Max. current-carrying capacity per slot | 4 A |
| Current per signal | 2 A |
| Insulation strength | 109 Ω |
Connection Data
| Sheathing stripping length | 100 mm |
|---|
| Distributor outlet | with M23 outlet, 12-pole |
|---|
General Technical Data
| Protection degree | IP67 |
|---|---|
| Number of contact sockets | 4 |
| Pollution severity | 3 |
| LED | Yes |
| LED colour for indicating operation | green |
| Number of poles | 4 |
|---|---|
| Connection thread | M12 |
| Fire behaviour | V-0 |
| LED initiator | Yes |
| LED colour for I/O function | yellow |
Material Data
| Housing main material | PA 6 GF |
|---|---|
| Housing colour | grey, RAL 7032 |
| Contact material | CuZn |
| Contact carrier material | PBT (UL 94 V0) |
| Material of distributor | Plastic |
|---|---|
| Screw socket | Nickel-plated CuZn |
| Contact surface | Gold-plated |
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 80 °C |
|---|---|
| Operating temperature, max. | 80 °C |
| Operating temperature | -25 - 80°C |
| Operating temperature range, min. | -25 °C |
|---|---|
| Operating temperature, min. | -25 °C |
