Weidmuller 1859140000 SAI-8-SH 5P FC
- MPN: 1859140000
- PPN: WDM-1859140000
CAD
$206.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

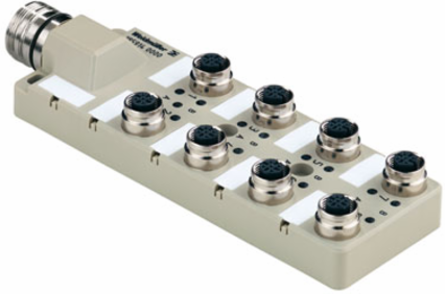

Sensor-actuator passive distributor, Push-Pull, M12, with M23 outlet, 19-pole, Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus
- UL File Number Search
- E92202
ROHSConform
Technical Data Cable
- Suitable for cable carriers
- No
Number of poles5

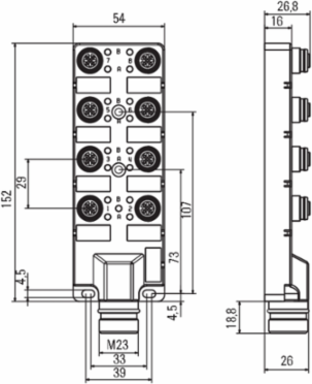

Dimensions And Weights
- Width
- 54 mm
- Height
- 34.3 mm
- Net weight
- 295 g
Width (inches)2.126 inch
Height (inches)1.35 inch
Standards
- Certificate No. (cURus)
- E92202
Electrical Data
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 9 A
- Electrical isolation available
- No
Rated voltage, max.30 V
Max. current-carrying capacity per slot4 A
Current per signal2 A
Insulation strength109 Ω
Connection Data
- Sheathing stripping length
- 100 mm
Distributor outletwith M23 outlet, 19-pole
General Technical Data
- Protection degree
- IP67
- Number of contact sockets
- 8
- Pollution severity
- 3
- LED
- Yes
- LED colour for indicating operation
- green
Number of poles5
Connection threadM12
Fire behaviourV-0
LED initiatorYes
LED colour for I/O functionyellow
Material Data
- Housing main material
- PA 6 GF
- Housing colour
- grey, RAL 7032
- Contact material
- CuZn
- Contact carrier material
- PBT (UL 94 V0)
Material of distributorPlastic
Screw socketNickel-plated CuZn
Contact surfaceGold-plated
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature
- -25 - 80°C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
