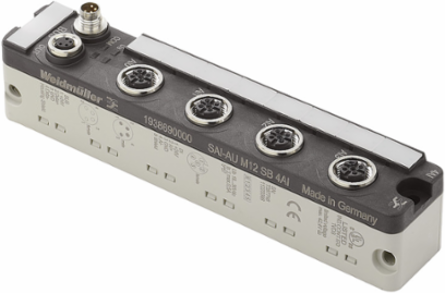

Weidmuller 1938690000 SAI-AU M12 SB 4AI
- MPN: 1938690000
- PPN: WDM-1938690000
CAD
$746.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Active, Subbus
Documentation & Downloads
Specifications
General Data
- Certificate
- CE, cULus
- Housing main material
- Pocan, PBT
- Protection degree
- IP67
Earth< 200 g
L x W x H155 / 30 / 32
UL 94 flammability rating5VA
Approvals
- Approvals
- CE, CULUS, EAC
- UL File Number Search
- E141197
ROHSConform
Digital Inputs
- Diagnosis indication
- red
Dimensions And Weights
- Length
- 155 mm
- Width
- 30 mm
- Height
- 32 mm
- Net weight
- 277 g
Length (inches)6.102 inch
Width (inches)1.181 inch
Height (inches)1.26 inch
Digital Outputs
- Diagnosis indication
- red
Connections
- Connection to Subbus (SUB-IN)
- 1 x M8 plug 4-pole, A-coded
- I/O connections
- 4 x M12 female, 5-pole A-coded
Connection to Subbus (SUB-OUT)1 x M8 female 4-pole, A-coded
Supply Voltage
- Limits
- 18 V DC ... 30 V DC
- Reverse polarity protection
- Yes
Operating voltage24 V
Classifications
- ETIM 6.0
- EC001601
- eClass 9.0
- 27-24-26-05
- eClass 10.0
- 27-24-26-05
ETIM 7.0EC001601
eClass 9.127-24-26-90
UNSPSC43-17-27-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- 0 °C...60 °C
Operating temperature, min.0 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...85 °C
