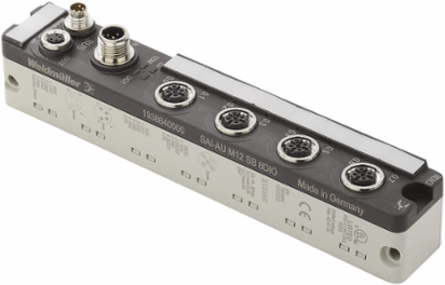

Weidmuller 1938640000 SAI-AU M12 SB 8DIO
- MPN: 1938640000
- PPN: WDM-1938640000
CAD
$393.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Active, Subbus, Complete modul
Documentation & Downloads
Specifications
General Data
- Certificate
- CE, cULus
- Housing main material
- Pocan, PBT
- Protection degree
- IP67
Earth< 200 g
L x W x H180 / 30 / 32
UL 94 flammability rating5VA
Approvals
- Approvals
- CE, CULUS, EAC
- UL File Number Search
- E141197
ROHSConform
Digital Inputs
- Diagnosis indication
- red
- Input current, low
- < 15 mA in accordance with EN 61131-2 Type 1
- Input voltage, high
- >15 V in accordance with EN 61131-2 Type 1
- Permitted input voltage
- -30 V to +30 V (protected against polarity reversal)
Input current, high2 mA to 15 mA in accordance with EN 61131-2 Type 1
Input filter1 ms, 3 ms, 5 ms, 10 ms, configurable
Input voltage, low<5 V in accordance with EN 61131-2 Type 1
Separation of potentials to module electronicsnone
Dimensions And Weights
- Length
- 180 mm
- Width
- 30 mm
- Height
- 32 mm
- Net weight
- 296 g
Length (inches)7.087 inch
Width (inches)1.181 inch
Height (inches)1.26 inch
Digital Outputs
- Diagnosis indication
- red
- Output voltage, high
- Supply voltage less 0.7 V DC
- Separation of potentials to module electronics
- none
- Switching frequency, inductive load
- max. 1 Hz
- Switching frequency, resistive load
- max. 100 Hz
Max. total current outputs4 A
Output voltage, low0 V DC
Short-circuit proofYes, cut-off for short circuit and error message
Switching frequency, lamp loadmax. 8 Hz
max. current-carrying capacity per output signal0.5 A
Connections
- Connection to Subbus (SUB-IN)
- 1 x M8 plug 4-pole, A-coded
- I/O connections
- 4 x M12 female, 5-pole A-coded
Connection to Subbus (SUB-OUT)1 x M8 female 4-pole, A-coded
Supply voltage (AUX-IN)1x M12 plug 5-pole, A-coded
Supply Voltage
- Contact load
- Per PIN max. 4 A
- Max. total current module
- 8 A
- Reverse polarity protection
- Yes
Limits18 V DC ... 30 V DC
Operating voltage24 V
Classifications
- ETIM 6.0
- EC001601
- eClass 9.0
- 27-24-26-05
- eClass 10.0
- 27-24-26-05
ETIM 7.0EC001601
eClass 9.127-24-26-90
UNSPSC43-17-27-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Module type
- Complete modul
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- 0 °C...60 °C
Operating temperature, min.0 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...85 °C
