Weidmuller 1468860000 SAI-M12-KSC-0.34/0.5
- MPN: 1468860000
- PPN: WDM-1468860000
CAD
$1.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

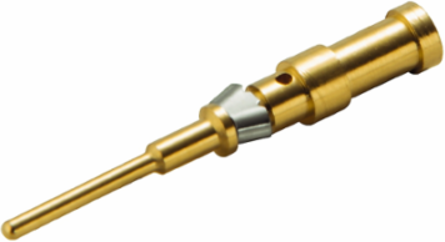

Contact, Pin
Documentation & Downloads
Specifications
Electrical Properties
| Rated voltage | 250 V |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 0.55 g |
|---|
General Info
| Contact surface | Gold-plated |
|---|
Classifications
| ETIM 6.0 | EC000796 |
|---|---|
| eClass 9.0 | 27-44-02-92 |
| eClass 10.0 | 27-44-02-92 |
| ETIM 7.0 | EC000796 |
|---|---|
| eClass 9.1 | 27-44-02-90 |
Technical Data Customisable Plug-In Connectors
| Coding | D |
|---|---|
| Connection cross-section, max. | 0.5 mm² |
| Contact surface | Gold-plated |
| Rated current | 4 A |
| Type of connection | Crimp connection |
| Connection cross-section | AWG 20 - AWG 22 |
|---|---|
| Connection cross-section, min. | 0.34 mm² |
| Pollution severity | 3 |
| Rated voltage | 250 V |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 85 °C |
|---|
| Operating temperature, min. | -40 °C |
|---|
