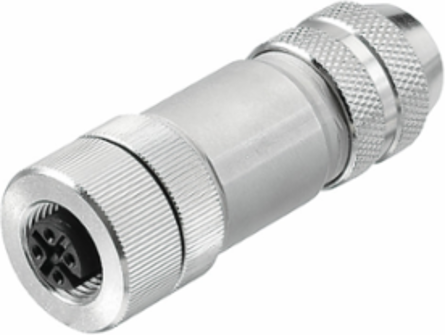

Weidmuller 1191020000 SAIBM-5/6S M12 5P A-COD
- MPN: 1191020000
- PPN: WDM-1191020000
CAD
$20.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 47 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 6 mm |
|---|---|
| Cable glands | PG 7 |
| Connection cross-section, max. | 0.75 mm² |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Rated voltage | 125 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Screw connection |
| Cable diameter, min. | 4 mm |
|---|---|
| Coding | A |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | CuZn |
| Number of poles | 5 |
| Pollution severity | 3 |
| Rated current | 4 A |
| Shield connection | Yes |
| Threaded ring material | Diecast zinc |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 85 °C |
|---|
| Operating temperature, min. | -40 °C |
|---|
