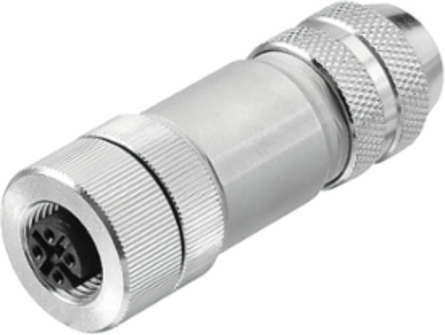

Weidmuller 1784780000 SAIBM 5/8S M12 5P B-COD
- MPN: 1784780000
- PPN: WDM-1784780000
CAD
$18.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 48 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate No. (cURus)E307231
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Cable glands
- PG 9
- Connection cross-section, max.
- 0.75 mm²
- Contact surface
- Gold-plated
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
- Rated voltage
- 125 V
- Temperature range of housing
- -40 … +85 ° C
- Type of connection
- Screw connection
Cable diameter, min.6 mm
CodingB
Connection cross-section, min.0.14 mm²
Housing main materialCuZn
Number of poles5
Pollution severity3
Rated current4 A
Shield connectionYes
Threaded ring materialDiecast zinc
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-40 °C
