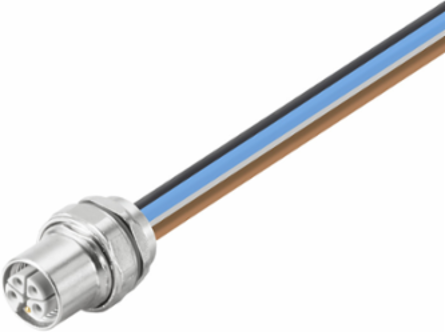

Weidmuller 2625970000 SAIE-M12BL-0.3VHM16-2.5
- MPN: 2625970000
- PPN: WDM-2625970000
CAD
$32.15
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, Female socket, straight, M 16, Number of poles: 5, Rear panel mounting
Specifications
General Data
| Cable glands | M 16 |
|---|---|
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Plugging cycles | 500 |
| Rated current | 16 A |
| Strand / cable length | 0.3 m |
| Coding | L |
|---|---|
| Contact material | Cu |
| Core cross-section | 2.5 mm² |
| Number of poles | 5 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 63 V |
| Temperature range of housing | -40 … +85 ° C |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 99,999 g |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
