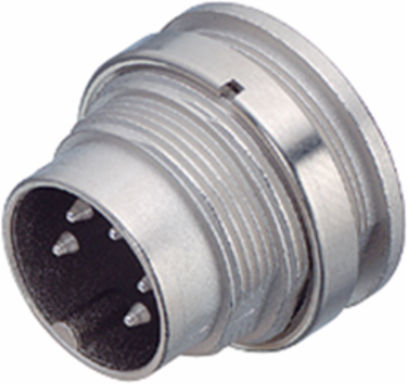

Weidmuller 1269790000 SAIE-M16S-5-HWM
- MPN: 1269790000
- PPN: WDM-1269790000
CAD
$17.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M16, M 18, Number of poles: 5
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 18
- Conductor cross-section, max.
- 0.75 mm²
- Connection thread
- M16
- Core cross-section
- 0.25 mm²
- Number of poles
- 5
- Rated current
- 6 A
- Shield connection
- No
- Type of connection
- Solder connection
Codingnone
Conductor cross-section, min.0.14 mm²
Contact surfaceAg (silver)
Housing main materialZinc diecast, nickel-plated
Protection degreeIP40
Rated voltage250 V
Temperature range of housing-30…+90 °C
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 12 g
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 90 °C
Operating temperature, min.-40 °C
