Weidmuller 1467630000 SAIE-M8B-8-0.2U-FP
- MPN: 1467630000
- PPN: WDM-1467630000
CAD
$20.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

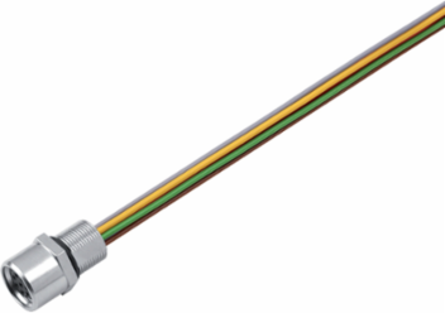

Built-in plugs, M8 thread, Female socket, straight, M 8, Number of poles: 8
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 8
- Connection thread
- M8 thread
- Core cross-section
- 0.14 mm²
- Number of poles
- 8
- Protection degree
- IP67, when screwed in
- Rated voltage
- 30 V
- Strand / cable length
- 0.2 m
- Type of connection
- Socket connector
Codingnone
Contact surfaceGold-plated
Housing main materialBrass, nickel-plated
Plugging cycles≥ 100
Rated current1.5 A
Rated voltage (text)30 V
Temperature range of housing-25…+85 °C
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 10 g
Standards
- Connector standard
- IEC 61076-2-104
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
