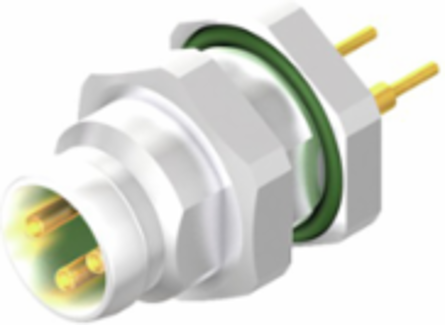

Weidmuller 1467610000 SAIE-M8S-8-TL-HW
- MPN: 1467610000
- PPN: WDM-1467610000
CAD
$23.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M8 thread, pin, straight, M 8, Number of poles: 8
Documentation & Downloads
Specifications
General Data
| Cable glands | M 8 |
|---|---|
| Connection thread | M8 thread |
| Housing main material | Brass, nickel-plated |
| Protection degree | IP67, when screwed in |
| Rated voltage | 30 V |
| Temperature range of housing | -25…+85 °C |
| Coding | none |
|---|---|
| Contact surface | Gold-plated |

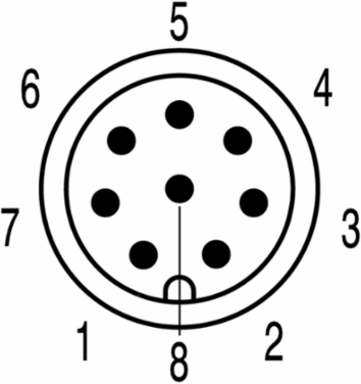

| Number of poles | 8 |
| Rated current | 1.5 A |
| Rated voltage (text) | 30 V |
| Type of connection | Pin |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 5.65 g |
|---|
Standards
| Connector standard | IEC 61076-2-104 |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
