Weidmuller 1467640000 SAIE-M8B-8-0.2U-HW
- MPN: 1467640000
- PPN: WDM-1467640000
CAD
$20.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

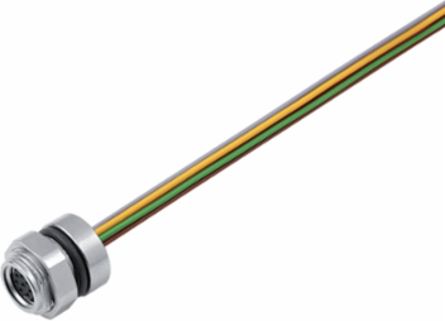

Built-in plugs, M8 thread, Female socket, straight, M 8, Number of poles: 8
Documentation & Downloads
Specifications
General Data
| Cable glands | M 8 |
|---|---|
| Connection thread | M8 thread |
| Core cross-section | 0.14 mm² |

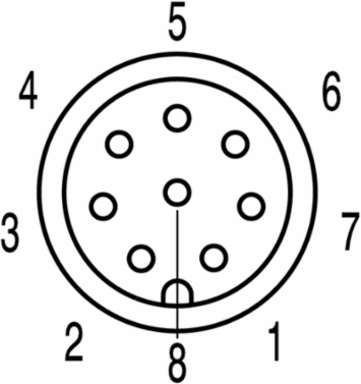

| Number of poles | 8 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 30 V |
| Strand / cable length | 0.2 m |
| Type of connection | Socket connector |
| Coding | none |
|---|---|
| Contact surface | Gold-plated |
| Housing main material | Brass, nickel-plated |
| Plugging cycles | ≥ 100 |
| Rated current | 1.5 A |
| Rated voltage (text) | 30 V |
| Temperature range of housing | -25…+85 °C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 10 g |
|---|
Standards
| Connector standard | IEC 61076-2-104 |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
