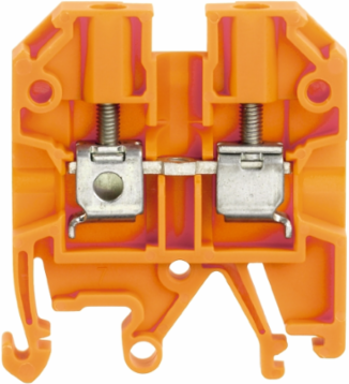

Weidmuller 0467400000 SAK 4/EN OR

MPN: 0467400000
PPN: WED-0467400000

$1.96

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

SAK 4/EN OR

Specifications

Approvals

Approvals	CE
Approvals	EAC
Approvals	KEMAATEX
Approvals	UR
UL File Number Search	E60693

Approvals	CSA
Approvals	IECEXKEM
Approvals	KEMAKEUR
ROHS	Conform

Dimensions And Weights

Width	6.5 mm
Height	42 mm
Depth	47.5 mm
Weight	11.73 g

Width (inches)	0.256 inch
Height (inches)	1.654 inch
Depth (inches)	1.87 inch
Net weight	9.35 g

Csa Rating Data

Certificate No. (CSA)	12400-129
Voltage size C (CSA)	600 V
Wire cross section min. (CSA)	26 AWG

Current size C (CSA)	36 A
Wire cross section max. (CSA)	10 AWG

General Ordering Data

Delivery status	This article will no longer be available in the future.
Alternative product	1036760000
Order No.	0467400000
GTIN (EAN)	4008190162092

Available until	2017-12-31
Type	SAK 4/EN OR
Version	SAK Series, Feed-through terminal, Rated cross-section: 4 mm², Screw connection
Qty.	100 pc(s).

Additional Technical Data

Explosion-tested version	Yes
Open sides	right

Number of similar terminals	1
Type of mounting	Snap-on

Material Data

Material	PA 66
UL 94 flammability rating	V-2

Colour	Orange

Safety Note

Safety notice	Safety Information

Classifications

ETIM 3.0	EC000897
ETIM 5.0	EC000897
UNSPSC	30-21-18-11
eClass 6.2	27-14-11-20
eClass 8.1	27-14-11-20
eClass 9.1	27-14-11-20

ETIM 4.0	EC000897
ETIM 6.0	EC000897
eClass 5.1	27-14-11-20
eClass 7.1	27-14-11-20
eClass 9.0	27-14-11-20

Product Information

Descriptive text technical data	With twin ferrules ZH 0.5 to ZH 2.5, rated voltage is 690 V.

System Specifications

Version	Screw connection, for screwable cross-connection, One end without connector
Number of potentials	1
No. of clamping points per level	2
Levels cross-connected internally	No
Mounting rail	TS 35, TS 32
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Continuous operating temp., min.	-50 °C

Continuous operating temp., max.	100 °C

Conductors For Clamping (Additional Connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	4 mm²

Rating Data

Certificate No. (ATEX)	KEMA97ATEX1798U
ATEX certificate	KEMA97ATEX1798U_e.pdf
IEC Ex certificate	IECEXKEM06.0014U_e.pdf
Current (ATEX)	28 A
Max. voltage (IECEX)	690 V
Wire cross section max. (IECEX)	4 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Ex 2014/34/EU label	II 2 G D
Rated voltage	800 V
Current at maximum wires	41 A
Volume resistance according to IEC 60947-7-x	1 mΩ
Pollution severity	3

ATEX certificate	IECEXKEM06.0014U
Certificate No. (IECEX)	IECEXKEM06.0014U
Max. voltage (ATEX)	690 V
Wire cross section max. (ATEX)	4 mm²
Current (IECEX)	28 A
Voltage, cross-connection	CrossConnectionGuide.pdf
Marking EN 60079-7	Ex e II
Rated cross-section	4 mm²
Rated current	32 A
Standards	IEC 60947-7-1
Rated impulse withstand voltage	8 kV

Rating Data Iecex/Atex

Certificate No. (ATEX)	KEMA97ATEX1798U
ATEX certificate	KEMA97ATEX1798U_e.pdf
IEC Ex certificate	IECEXKEM06.0014U_e.pdf
Current (ATEX)	28 A
Max. voltage (IECEX)	690 V
Wire cross section max. (IECEX)	4 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Ex 2014/34/EU label	II 2 G D

ATEX certificate	IECEXKEM06.0014U
Certificate No. (IECEX)	IECEXKEM06.0014U
Max. voltage (ATEX)	690 V
Wire cross section max. (ATEX)	4 mm²
Current (IECEX)	28 A
Voltage, cross-connection	CrossConnectionGuide.pdf
Marking EN 60079-7	Ex e II

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, rated connection, min.	0.13 mm²
Connection direction	on side
Gauge to IEC 60947-1	A4
Stripping length	12 mm
Tightening torque, min.	0.5 Nm
Twin wire-end ferrules, max.	2.5 mm²
Type of connection	Screw connection
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.	0.5 mm²
Wire connection cross section, solid core max. rated connection	6 mm²
Wire connection cross section, stranded, rated connection, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.	4 mm²

Clamping range, rated connection, max.	6 mm²
Clamping screw	M 3
Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.	0.5 mm²
Number of connections	2
Tightening torque, max.	1 Nm
Torque level with DMS electric screwdriver	2
Twin wire-end ferrules, min.	0.5 mm²
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.	4 mm²
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, solid core, min. rated connection	0.5 mm²
Wire connection cross section, stranded, rated connection, min.	0.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
