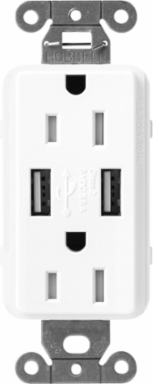

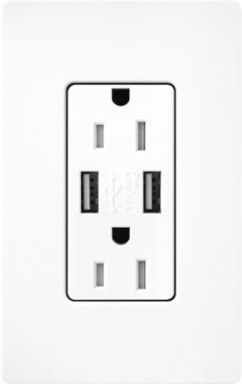

Lutron SCR-15-UBTR-BW Satin USB Receptacle 15A 2-Port 3.8A Output, Tamper-Resistant
- MPN: SCR-15-UBTR-BW
- UPC: 784276809887
- PPN: LUT-SCR-15-UBTR-BW
- UNSPSC: 39121406
CAD
$66.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Coordinate Lutron lighting controls and switches with Lutron Claro receptacles to complement your clients' decor. This USB receptacle features 2 USB Type A 2.0 ports with a combined 3.8 Amp output and contains a permanently installed internal tamper-resistant shutter mechanism, capable of resisting insertion of foreign elements into the receptacle openings. Install with screw terminals or push-in connections. Available in 7 Gloss colors and 20 Satin colors, Lutron receptacles become beautiful accessories that let you coordinate and customize the look of each room in any home. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
Features
- Includes two USB ports. Ports are rated for a minimum of 10,000 insertions and removals. Wallplate sold separately.
- Includes (1) Tamper resistant receptacle with dual USB Type A 2.0 ports; Satin finish
- 15 Amp capacity
- 125V only (US style wall box)
- USB 3.8A 5V Dual output Type A 2.0 (compatible with USB 1.1/2.0/3.0 devices)
- Tamper resistant shutter mechanism
- No visible mounting hardware
- Features screw terminal and push in connections for easy installation
- Coordinates with decorator-style dimmers and switches
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Includes two USB ports
- Ports are rated for a minimum of 10,000 insertions and removals
- Wallplate sold separately
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15 A |
|---|---|
| Decorative Color | Brilliant White |
| Family Color | White |
| Number of Poles | 1 |
| Temperature Rating, Maximum | 104 F |
| Voltage Rating | 125 |
| Wire Size | 10 to 14 |
| Material | Plastic/Metal |
| Mounting | Wallbox |
| Temperature Rating | 32 to 104 F |
| Color | Brilliant White |
| Size | 4.69 x 2.94;119 x 75 in;mm |
| Connection | Screw terminal |
|---|---|
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| NEMA Rating | 5-15R |
| Number of Wires | 3 |
| Type | Tamper-resistant USB receptacle |
| Wattage | 2500 W |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Surface Finishing | Satin |
| Aesthetic Finish | Satin |
| Finish | Satin |
