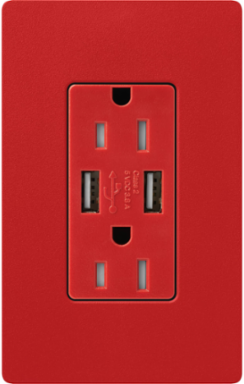

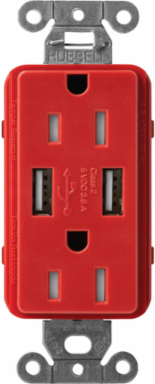

Lutron SCR-15-UBTR-SR Satin Finish 15A Dual USB Type A Tamper-Resistant Receptacle, 125V
Lutron SCR-15-UBTR-SR Satin Finish 15A Dual USB Type A Tamper-Resistant Receptacle, 125V
- MPN: SCR-15-UBTR-SR
- UPC: 784276810272
- PPN: LUT-SCR-15-UBTR-SR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$168.75/ EA
Description
Coordinate Lutron lighting controls and switches with Lutron Claro receptacles to complement your clients' decor. This USB receptacle features 2 USB Type A 2.0 ports with a combined 3.8 Amp output and contains a permanently installed internal tamper-resistant shutter mechanism, capable of resisting insertion of foreign elements into the receptacle openings. Install with screw terminals or push-in connections. Available in 7 Gloss colors and 20 Satin colors, Lutron receptacles become beautiful accessories that let you coordinate and customize the look of each room in any home. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
Features
- Includes (1) Tamper resistant receptacle with dual USB Type A 2.0 ports; Satin finish
- 15 Amp capacity
- 125V only (US style wall box)
- USB 3.8A 5V Dual output Type A 2.0 (compatible with USB 1.1/2.0/3.0 devices)
- Tamper resistant shutter mechanism
- No visible mounting hardware
- Features screw terminal and push in connections for easy installation
- Coordinates with decorator-style dimmers and switches
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Includes two USB ports
- Ports are rated for a minimum of 10,000 insertions and removals
- Wallplate sold separately.
Specifications
Specifications
- Connection
- Screw terminal
- Wire Size
- 10 to 14
- Number of Wires
- 3
- Type
- Tamper-resistant USB receptacle
- Amperage Rating
- 15 A
- Temperature Rating, Maximum
- 104 F
- Decorative Color
- Signal Red
- Surface Finishing
- Satin
- Material Quality
- Plastic/Metal
- Temperature Rating
- 32 to 104 F
- Finish
- Satin
- Color
- Signal Red
Environmental Conditions0 to 90% humidity, non-condensing
Family ColorRed
Wattage2500 W
Voltage Rating125
NEMA Rating5-15R
Number of Poles1
InsulationPlastic
MountingWallbox
MaterialPlastic/Metal
Aesthetic FinishSatin
Size4.69 x 2.94;119 x 75 in;mm
