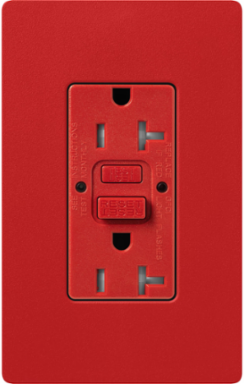

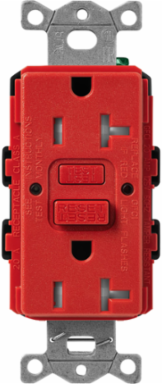

Lutron SCR-20-GFST-SR Lutron Claro Tamper-Resistant GFCI Duplex Receptacle, 20-Amp, Signal Red
Lutron SCR-20-GFST-SR Lutron Claro Tamper-Resistant GFCI Duplex Receptacle, 20-Amp, Signal Red
- MPN: SCR-20-GFST-SR
- UPC: 784276810234
- PPN: LUT-SCR-20-GFST-SR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$137.11/ EA
Description
Coordinate Lutron lighting controls and switches with Lutron Claro receptacles to complement your clients' decor. This self-testing GFCI receptacle automatically checks every 30 seconds to see if critical components are damaged and GFCI protection is lost. There is an LED status indicator that provides peace of mind as well as a permanently installed internal tamper-resistant shutter mechanism, capable of resisting insertion of foreign elements into the receptacle openings. Install with screw terminals or push-in connections. Available in 7 Gloss colors and 20 Satin colors, Lutron Claro receptacles become beautiful accessories that let you coordinate and customize the look of each room in any home. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)

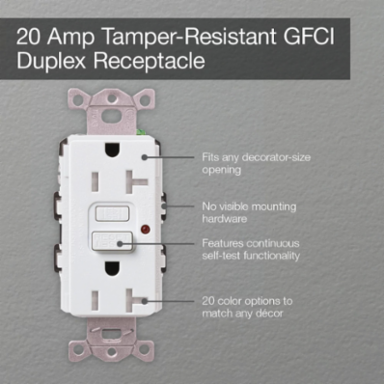

Features
- Includes (1) Tamper-Resistant GFCI Duplex Receptacle; Satin Finish
- 20 A capacity
- 125V only (US style wall box)
- Tamper resistant shutter mechanism
- Continuous self-test functionality automatically checks every 30 seconds to ensure the unit is functioning properly
- Manual test/reset buttons
- Features screw terminal and push in connections for easy installation
- LED indicator light for GFCI status
- Coordinates with decorator-style dimmers and switches
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
- LEDs indicate status of GFCI protection function
- Press reset button to reset GFCI after circuit interruption
- Wallplate sold separately.
Specifications
Specifications
- Amperage Rating
- 20 A
- Decorative Color
- Signal Red
- Family Color
- Red
- Number of Poles
- 2
- Temperature Rating, Maximum
- 104 F
- Voltage Rating
- 125
- Wire Size
- 10 to 12
- Material
- Plastic/Metal
- Mounting
- Wallbox
- Temperature Rating
- 32 to 104 F
- Color
- Signal Red

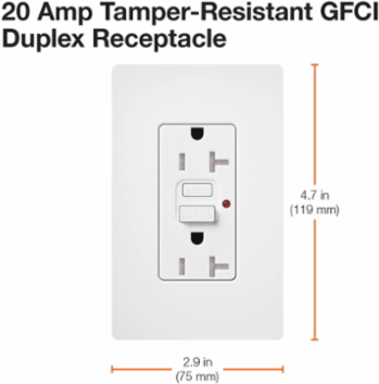

- Size
- 4.69 x 2.94;119 x 75 in;mm
ConnectionScrew terminal
Environmental Conditions0 to 90% humidity, non-condensing
NEMA Rating5-20R
Number of Wires3,4,5
TypeGFCI receptacle
Wattage2500 W
InsulationPlastic
Material QualityPlastic/Metal
Surface FinishingSatin
Aesthetic FinishSatin
FinishSatin
