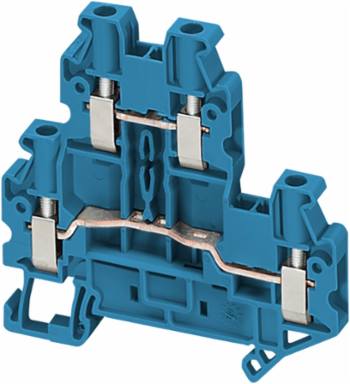

Schneider Electric NSYTRV44DBL Linergy TR Terminal Block, 4 mm2, Double Level, Set of 50
- MPN: NSYTRV44DBL
- PPN: SCH-NSYTRV44DBL
CAD
$11.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric NSYTRV44DBL Linergy TR Terminal Block is an essential component for any automation and control setup. Designed for connection flexibility, this double-level terminal block accommodates conductors up to 4 mm2, making it suitable for a variety of applications. Supplied in a convenient set of 50, these terminal blocks are ideal for panel builders and electricians looking to streamline their installations while ensuring reliable electrical connections. With its robust construction and thoughtful design, this product stands out in the category of terminal blocks, delivering efficiency and dependability in electrical distribution systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Physical Attributes
- Color
- Blue
Wire Stripping Length9 mm
Complementary Attributes
- Line Rated Current
- 30-30 A CSA, 30-30 A UL, 30-30 A EN/IEC 60947-7-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Cross Section
- 0.14-6 mm², solid without cable end0.14-6 mm², solid with cable end0.2-4 mm², flexible with cable end, 0.14-6 mm², flexible without cable end
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
- Resistivity
- 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
- Tool Type
- connection screwdriver, disconnection screwdriver
- [Ue] Rated Operational Voltage
- 600 V CSA, 600 V UL800 V EN/IEC 60947-7-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.002471393, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.001544586, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 6 kg CO2 eq., 5.932823377
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- terminal block
- Device Short Name
- TRV
- Dielectric Strength
- 1000 V IEC 60243-1
- Flame Retardance
- V0 0.8 mm UL 94
- Nominal Cross Section
- 4 mm²
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- terminal block
- Range
- Linergy
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Terminal Block Type
- passthrough
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Pep Code
- ENVPEP2309018EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 65 mm
- Width Nominal
- 6.2 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 18.144 g
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Certificate AgencyGL, CSA, UL, DNV
Connections - Terminals1 x screw terminal upstream M3), 1 x screw terminal downstream M3)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.052131897
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.114502953
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2518
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Positionsideways
Dielectric Constant3.7 at 1 MHz
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Number Of Terminals2
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level2
Tightening Torque0.6-0.8 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %46
Length Total69.9 mm
Accessory / Separate Part Categoryconnection accessory
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Carbon Footprint6.103474205
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Pep CodeENVPEP2309018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- terminal block
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000897
ETIM 9EC000897
