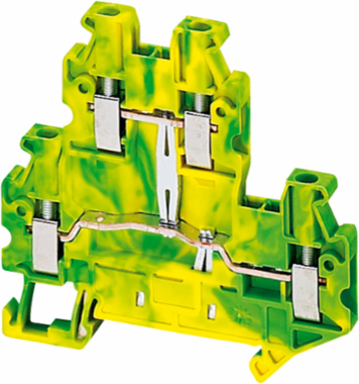

Schneider Electric NSYTRV24DPE Linergy TR Terminal Block, 2 Level, 2.5 mm2, Green-Yellow, Set of 50

MPN: NSYTRV24DPE
PPN: SCH-NSYTRV24DPE
UNSPSC: 39121410

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$31.09

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This terminal block set from Schneider Electric, featuring a robust green-yellow design, is engineered for efficiency and reliability in automation and control applications. With a two-level configuration and a capacity of 2.5 mm2, these items facilitate seamless wiring connections while maintaining organized installations. Supplied in sets of 50, the NSYTRV24DPE Linergy TR Terminal Blocks are ideal for meeting the diverse connectivity needs within modern electrical systems, ensuring optimal performance and safety in various environments.

Features

It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section
Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
Releasing pressure on the sides stops the flow of cable ends
Facilitates storage by avoiding mixing cable ends of different sizes
Identifies the cross section of cable ends it contains

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany, United States

Weight	20.36 g

Physical Attributes

Color	green-yellow

Wire Stripping Length	9 mm

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Cable Cross Section	0.14-4 mm², solid, 0.2-2.5 mm², flexible with cable end, 0.14-4 mm², flexible without cable end
Dielectric Loss	0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
Surface Resistance	1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Connections Terminals	1 x screw terminal upstream, 1 x screw terminal downstream
Carbon Footprint Of The Distribution Phase A4	0.002662373, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.001126191
Carbon Footprint Of The Use Phase B2 B3 B4 B6	4 kg CO2 eq., 4.4787
Local Publishable Date	2026-06-27
Use Carbon Footprint	4.4787
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2518
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Connection Position	sideways
Dielectric Constant	3.7 at 1 MHz
Energy Efficiency Optimized	False
Material	polyamide 6/6: insulating case
Nominal Cross Section	2.5 mm²
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	terminal block
Range	Linergy
Returnability	Yes
Sustainable Packaging	Yes
Terminal Block Type	protective earth
Total Lifecycle Carbon Footprint	5 kg CO2 eq.
Database Version	2022-01
Height Nominal	65 mm
Width Nominal	5.2 mm
Customs Code	8536904000
Silicone Free	Yes
Functional Unit Description	Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm2, a rated voltage 690 V.
Functional Unit Unit	unit
Recyclability Potential In %	64

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Creep Resistance	500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Resistivity	10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Tool Type	connection screwdriver, disconnection screwdriver
Certificate Agency	CSA, DNV, UL, GL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.049863535, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.110061314
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	terminal block
Device Short Name	TRV
Dielectric Strength	1000 V IEC 60243-1
Flame Retardance	V0 0.8 mm UL 94
Mounting Mode	clip-on
Number Of Terminals	2
Product Name	Linergy TR
Quantity Per Set	set of 50
Range Of Product	Linergy
Software Version	v5.9.4
Terminal Block Level	2
Tightening Torque	0.5-0.6 N.m
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Length Total	69.9 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Recycled Metal Content At Cr Level	0 %
Silicon Free	Yes
Environmental Disclosure	ENVPEP2309022EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Operation	-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Carbon Footprint	4.642413413
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Spacial enclosures
Pep Code	ENVPEP2309022EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
