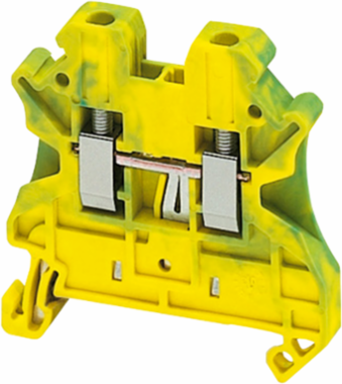

Linergy TR Terminal Block, 2.5 mm2, Green-Yellow, Set of 50
Schneider Electric

Schneider Electric NSYTRV22PE Linergy TR Terminal Block, 2.5 mm2, Green-Yellow, Set of 50

  • MPN: NSYTRV22PE
  • PPN: SCH-NSYTRV22PE
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $11.80

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Germany, United States

    Physical Attributes

    Color
    green-yellow
    Wire Stripping Length9 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.14-4 mm², solid, 0.2-2.5 mm², flexible with cable end, 0.14-4 mm², flexible without cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Surface Resistance
    1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    Certificate Agency
    GL, CSA, UL, DNV, VDE
    Carbon Footprint Of The Distribution Phase [A4]
    0.0015759, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.00066661
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    4 kg CO2 eq., 4.4787
    Local Publishable Date
    2026-06-27
    Stocking Flag
    N
    Use Carbon Footprint
    4.4787
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2518
    China Rohs In Scope
    No
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Connection Position
    sideways
    Dielectric Constant
    3.7 at 1 MHz
    Energy Efficiency Optimized
    False
    Material
    polyamide 6/6: insulating case
    Nominal Cross Section
    2.5 mm²
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    terminal block
    Range
    Linergy
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Terminal Block Type
    protective earth
    Total Lifecycle Carbon Footprint
    5 kg CO2 eq.
    Pep Code
    ENVPEP2309022EN
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    referent product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    47.5 mm
    Width Nominal
    5.2 mm
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    Yes
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    4.4787
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    24.073
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    3.4469
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    6.6592
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
    1.0388
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.3716
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    114.1
    Customs Code
    3926909989
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Resistivity10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Tool Typeconnection screwdriver, disconnection screwdriver
    Connections - Terminals1 x screw terminal upstream, 1 x screw terminal downstream
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.029515, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.065147
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility Codeterminal block
    Device Short NameTRV
    Dielectric Strength1000 V IEC 60243-1
    Flame RetardanceV0 0.8 mm UL 94
    Mounting Modeclip-on
    Number Of Terminals2
    Product NameLinergy TR
    Quantity Per Setset of 50
    Range Of ProductLinergy
    Software Versionv5.9.4
    Terminal Block Level1
    Tightening Torque0.5-0.6 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm2, a rated voltage 690 V.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %64
    Length Total47.7 mm
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)11.000 g
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]4.4727
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]114.1
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]48.232
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]2.0126
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-1.2972
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]136.02
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]21.911
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]21.911

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309022EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
    Halogene PerformanceHalogen free plastic parts product
    Mercury FreeYes
    Carbon Footprint4.57560451
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Product CompatibilitySpacial enclosures
    Pep CodeENVPEP2309022EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    terminal block
    Range Of ProductLinergy

    ETIM

    ETIM 8
    EC000901
    ETIM 9EC000901

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Number Of Measurement Input
    2
