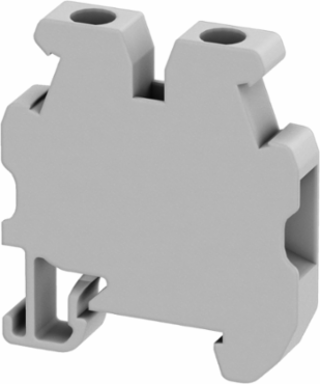

Schneider Electric NSYTRV42M Mini Terminal Block Linergy TR Gray 4 mm² 2 Points 30 mm Length
- MPN: NSYTRV42M
- PPN: SCH-NSYTRV42M
CAD
$3.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Mini Terminal Block from Schneider Electric, featuring a compact design and durable construction, is an essential component in automation and control applications. With a capacity of 4 mm² and two points for connections, this terminal block enables efficient wiring solutions with a length of 30 mm, making it suitable for space-constrained environments. Its gray finish not only contributes to a neat installation but also complements a wide range of panel designs, ensuring that it can seamlessly integrate into your system. Designed for reliability, this terminal block is an ideal choice for various terminal block accessory needs.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 600 V CSA, 500 V EN/IEC 60947-7-1, 600 V cURus, 500 V ATEX Exe II Ex II 2 GD
- Tightening Torque
- 0.6-0.8 N.m
- Cable Cross Section
- 0.2-6 mm² solid, 0.2-6 mm² flexible (with or without cable end)
- Length
- 30 mm
- Height
- 34 mm
- Connection Position
- Sideways
- Terminal Block Type
- Passthrough
- Flame Retardance
- V0 0.8 mm UL 94
- Dielectric Constant
- 3.7 at 1 MHz
- Resistivity
- 10000 MΩ·m IEC 60093, 10000 MΩ·m VDE 0303-T30
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
- Compliance
- VDE, EAC, IECEx, CSA, cURus, ATEX
- Country of Origin
- Poland (PL)
- Range Compatibility
- Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A ATEX Exe II Ex II 2 GD, 30 A cURus
Nominal Cross Section4 mm²
Ambient Air Temperature for Operation-40 to 130 °C IEC 60216-1, VDE 0304-T21
Width6.2 mm
Number of Terminals2
Connections - Terminals1 x screw terminal upstream M3, 1 x screw terminal downstream M3
MaterialPolyamide 6/6 insulating case, Copper alloy connector and screw, Copper alloy commoning link, Chromium-nickel steel spring
Dielectric Strength1000 V IEC 60243-1
Dielectric Loss0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
Halogen ContentHalogen free plastic parts
RoHS ComplianceCompliant with exemptions
Mounting Modeclip-on
ColorGray
