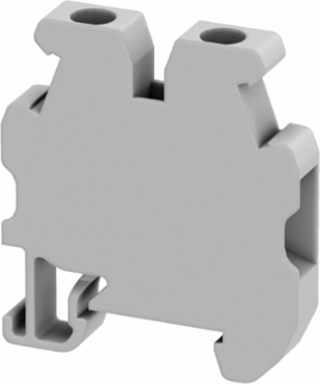

Schneider Electric NSYTRV42MPE SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, PROTECTIVE EARTH, 2PTS, 4MM²
Schneider Electric NSYTRV42MPE SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, PROTECTIVE EARTH, 2PTS, 4MM²
- MPN: NSYTRV42MPE
- PPN: SCH-NSYTRV42MPE
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$11.09/ EA
Description
SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, PROTECTIVE EARTH, 2PTS, 4MM²
Specifications
Environment
- Product Certifications
- ATEX || EAC || cURus || CSA || VDE || IEC-Ex
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Specifications
- Terminal Block Type
- protective earth
- Product Name
- Linergy TR
- Range
- Linergy
- Terminal Block Level
- 1
- Quantity Per Set
- set of 50
- Device Short Name
- TRV
Product Or Component Typemini terminal block
Length30 mm
Mounting Modeclip-on
Nominal Cross Section4 mm²
Colourgreen-yellow
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 2
- Cable Cross Section
- 0.2-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.2-4 mm², flexible without cable end
- Number Of Measurement Input
- 1
- Flame Retardance
- V0 0.8 mm UL 94
- Resistivity
- 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Product Compatibility
- Spacial enclosures
Height34 mm
Connections - Terminals1 x screw terminal upstream || 1 x screw terminal downstream
Connection Positionsideways
Tool Typeconnection screwdriver || disconnection screwdriver
Wire Stripping Length8 mm
Materialpolyamide 6/6: insulating case
Width6.2 mm
Tightening Torque0.6-0.8 N.m
Creep Resistance500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309022EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
