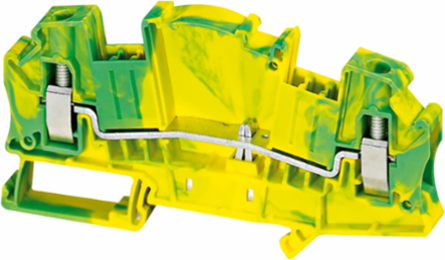

Schneider Electric NSYTRV62TTPE Linergy TR Protective Earth Terminal Block, 2 Points, 6 mm²

MPN: NSYTRV62TTPE
PPN: SCH-NSYTRV62TTPE

Spec sheet

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$39.80/ EA

Qty:

Loading add to cart quantity...

Description

Engineered for precision and reliability, the Linergy TR Protective Earth Terminal Block by Schneider Electric serves as an essential component for effective grounding in automation and control applications. Featuring two connection points and accommodating wire sizes of up to 6 mm², this terminal block ensures secure and efficient electrical connections. It is designed to enhance safety and facilitate easy installation, making it a valuable addition to any electrical system. As part of Schneider Electric’s commitment to quality, this product is ideal for various terminal block applications, providing peace of mind in both performance and safety.

Specifications

Nominal Cross Section: 6 mm

Dielectric Strength: 1000 V IEC 60243-1

Tightening Torque: 1.5-1.8 N.m (13.28-15.93 lbf.in)

Width: 8.2 mm (0.32 in)

Number of Connection Points: 2

Mounting Mode: Clip-on

Cable Cross Section: 0.2-10 mm solid, 0.2-10 mm flexible without cable end, 0.2-6 mm flexible with cable end

Material: Polyamide 6/6 (insulating case)

Dielectric Loss: 0.01 at 1 MHz IEC 60250, VDE 0303-T4

Surface Resistance: 1000 G IEC 60093, VDE 0303-T30

Terminal Block Type: Protective earth

Product Certifications: cURus, CSA, EAC

Halogen Content: Halogen free plastic parts

Resistivity10000 M .m IEC 60093, VDE 0303-T30

Ambient Air Temperature for Operation-40 to 130 0C IEC 60216-1

Length100.8 mm (3.97 in)

Height49.6 mm (1.95 in)

Connection PositionInclined

Connections - Terminals1 x screw terminal upstream, 1 x screw terminal downstream

Wire Stripping Length10 mm (0.39 in)

Flame RetardanceV0 0.8 mm UL 94

Dielectric Constant3.7 at 1 MHz

Creep Resistance500 CTI (> 400 kB) IEC 60093, VDE 0303-T30

ColorGreen-yellow

RoHS ComplianceCompliant with Exemptions

Country of OriginPoland
