Tripp Lite B032-DPUA2 2-Port DisplayPort 1.1/USB KVM Switch with Audio/Video, Built-In Cables, USB Peripheral Sharing
Tripp Lite B032-DPUA2 2-Port DisplayPort 1.1/USB KVM Switch with Audio/Video, Built-In Cables, USB Peripheral Sharing
- MPN: B032-DPUA2
- UPC: 037332235978
- PPN: TRP-B032-DPUA2
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$244.84/ EA
Description
2-Port DisplayPort 1.1/USB KVM Switch with Audio/Video, Built-In Cables, USB Peripheral Sharing
Features
- Supports UHD resolutions up to 4096 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video

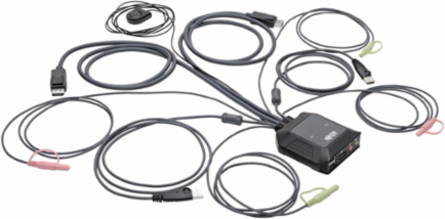

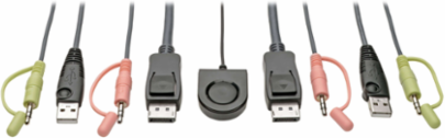

- Dual 4 ft. DisplayPort, USB and 3.5 mm audio cables are built right in for instant use
- Built-in remote port selector allows fast, easy toggling between computers
- USB console mouse port also accepts powered USB hub for connecting peripherals
- Widely compatible KVM switch works with Windows, Mac and Linux operating systems
- 3-year limited warranty
- Connects 2 Computers to a Single Monitor, Keyboard and Mouse
- Built-In Cables for Fast and Simple Setup
- Connect a USB Hub to Share Peripherals between Computers
- Transmits Crystal-Clear 4K Video and Digital Audio
Specifications
Features & Specifications
- Number of Users
- 1
- Port Selection
- Remote Selector
- Displayport Specification
- 1.1
- USB Specification
- USB 1.1 (up to 12 Mbps)
- Cat5 KVM Switch
- No
NIAP-Certified SecureNo
Max Supported Video Resolution4096 x 2160 @30Hz
HDCP Specification1.4
Driver RequiredNo
TechnologyDisplayPort; USB
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 2
- Side A - Connector 1
- (2) 3.5MM (FEMALE); DISPLAYPORT (FEMALE); (2) USB A (FEMALE)
- Computer Keyboard and Mouse Interface
- USB
- Console Keyboard and Mouse Interface
- USB
PC/Server ConnectionsDisplayPort; USB
Side B - Connector 1(4) 3.5MM (MALE); (2) DISPLAYPORT (MALE); (2) USB A (MALE)
Computer Monitor InterfaceDisplayport
Console Monitor InterfaceDisplayport
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 1.2 x 3.31 x 3.28
- Unit Weight (lbs.)
- 0.77
RackmountableNo
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- (x2) Green
Input
- Built-In Cable Length (ft.)
- 4
- Built-In Cable Length (in.)
- 48
Built-In Cable Length (m)1.2
Bus PoweredYes
Communications
- IP Remote Access
- No
Environmental
- Operating Temperature Range
- 32 to 122°F (0 - 50°C)
- Relative Humidity
- 0%-80% RH, Non-Condensing
Storage Temperature Range-4 to 140°F (-20 - 60°C)
Overview
- UPC Code
- 037332235978
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
