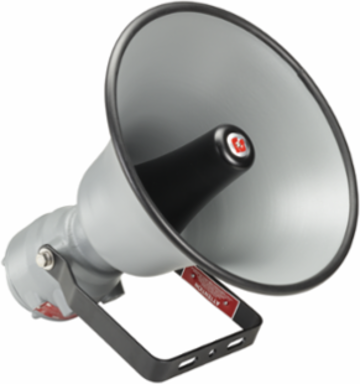

Federal Signal 314X-024-CN SelecTone 30W Amplified Speaker, Explosion-Proof, Supervised, UL and cUL CID1, ULC Fire Listed, 24VDC, Gray
- MPN: 314X-024-CN
- UPC: 782979221333
- PPN: FDS-314X-024-CN
- UNSPSC: 46171602
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Federal Signal's Models 304X and 314X Explosion-Proof Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both models are compatible with fire alarm, voice evacuation, suppression supervised control panels, and power boosters.These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel.*ULC Fire Listed Models (-CN models) can only be used with a UTM tone card
Features
- Available in 24VDC
- Four wire supervisable power circuit
- Capable of producing tones or voice messages
- Built-in gain control
- Fused input and output
- Cast aluminum housing, spun aluminum projector
- External mounting tabs
- Indoor/outdoor use
- Type 4X enclosure
- CSFM Approved
- 304X/314X UL Fire Listed
- 304X-CN/314X-CN ULC Fire Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Gray
- dBa 1 Meter
- 122
- Availability
- Available in 4-6 weeks
- Operating Current Amps
- 1.3
- Operating Voltage
- 24 Vdc
- Audible Signals Certification Listing
- ULC Fire Listed
- Depth
- 18.8 in, 47.752 cm
- Width
- 16.7 in, 42.418 cm
Weight16.4 lbs
Certification ListingULC Fire
dBa 10 Ft112
Mount TypeSurface
Operating Temp.-40˚ to +150˚F (-40˚ to +66˚C)
Watts30
Audible Signals Watts30
Height18.8 in, 47.752 cm
