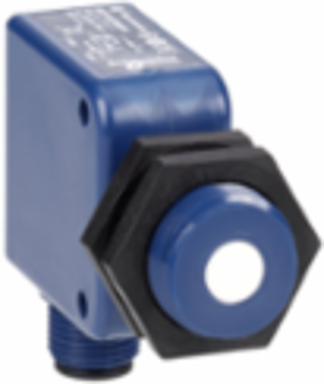

Telemecanique Sensors VM1CAQ Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 4...20 mA, M12
- MPN: VM1CAQ
- UPC: 785901596585
- PPN: TES-VM1CAQ
- UNSPSC: 39122230
CAD
$305.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 4...20 mA, M12
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M18 x 1
- Series Name
- Virtu VM1
- Range Of Product
- Hyde Park
- Sensor Type
- ultrasonic sensor
- Sensor Design
- flat form + cylindrical M18
- Front Material
- glass epoxy
- Device Short Name
- VM1
- [Us] Rated Supply Voltage
- 15...24 V DC overload and short-circuit protection
Type Of Sensing Windowadjustable
Type Of Output Signalanalog
Supply Voltage Limits13-28 V DC
Electrical Connectionmale connector M12 4 pins
Enclosure Materialvalox
Materialplastic
Analogue Output Range4...20 mA autoslope
Wiring Technique4-wire
Complementary
- Repeat Accuracy
- 1.27 %
- Height
- 43.7 mm
- Maximum Switching Current
- 40 mA reverse polarity protection
- Resistance To Electrostatic Discharge
- 8 kV level 4 IEC 61000-4-2
- [Sa] Assured Operating Distance
- 50.8-508 mm remote teach push-button
- Depth
- 43.7 mm
- Blind Zone
- 0-51 mm
- Length
- 65.61 mm
- Current Consumption
- 40 mA
Beam Angle5 °
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 200 mm sensing distance
Status Ledoff when object is within range 1 LED green)
Transmission Frequency300 kHz
Width18 mm
[Sn] Nominal Sensing Distance508-508 mm
[Sd] Sensing Range50.8-508 mm
Net Weight0.033 kg
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation-30-70 °C
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111225EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111234EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
