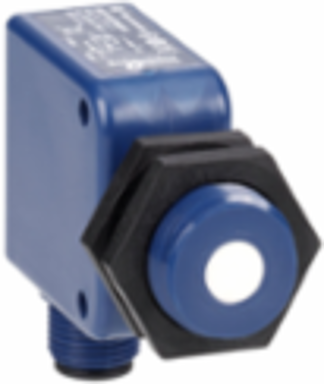

Telemecanique Sensors VM1PNCQ Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, NC, 12...24 VDC, M12
- MPN: VM1PNCQ
- UPC: 785901797975
- PPN: TES-VM1PNCQ
- UNSPSC: 39122230
CAD
$212.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, NC, 12...24 VDC, M12
Documentation & Downloads
Specifications
Key Specifications
- Type Of Sensing Window
- adjustable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Supply Voltage Limits
- 10-28 V DC
- Electrical Connection
- male connector M12 4 pins
- Enclosure Material
- valox
- Material
- plastic
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Series NameVirtu VM1
Discrete Output Function1 NC
Range Of ProductHyde Park
Sensor Typeultrasonic sensor
Sensor Designflat form + cylindrical M18
Front Materialglass epoxy
Device Short NameVM1
Wiring Technique4-wire
Complementary
- Repeat Accuracy
- 1.27 %
- Height
- 43.7 mm
- Maximum Switching Current
- 100 mA reverse polarity protection
- Resistance To Electrostatic Discharge
- 8 kV level 4 IEC 61000-4-2
- [Sa] Assured Operating Distance
- 50.8-508 mm remote teach push-button
- Depth
- 43.7 mm
- Blind Zone
- 0-51 mm
- Length
- 59.69 mm
- Current Consumption
- 40 mA
Beam Angle5 °
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 200 mm sensing distance
Status Ledoutput not active 1 LED green)
Transmission Frequency300 kHz
Width18 mm
[Sn] Nominal Sensing Distance508-508 mm
[Sd] Sensing Range50.8-508 mm
Net Weight0.033 kg
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Standards
- EN 60947
- Nema Degree Of Protection
- NEMA 4X indoor use only)
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-30-70 °C
Ambient Air Temperature For Storage-40-85 °C
Relative Humidity100-100 % without condensation
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60068-2-6
MarkingCE
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111225EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111234EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
