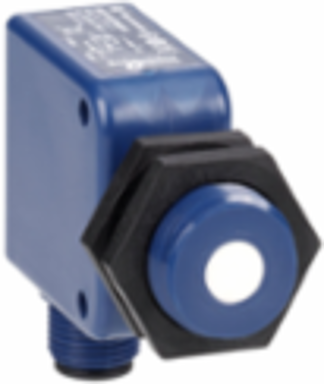

Telemecanique Sensors VM1NNOQ Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, NO, 12...24 VDC, M12
- MPN: VM1NNOQ
- UPC: 785901758259
- PPN: TES-VM1NNOQ
- UNSPSC: 39122230
CAD
$212.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, NO, 12...24 VDC, M12
Documentation & Downloads
Specifications
Key Specifications
| Type Of Sensing Window | adjustable |
|---|---|
| Discrete Output Type | NPN |
| Type Of Output Signal | discrete |
| Supply Voltage Limits | 10-28 V DC |
| Electrical Connection | male connector M12 4 pins |
| Enclosure Material | valox |
| Material | plastic |
| [Us] Rated Supply Voltage | 12...24 V DC overload and short-circuit protection |
| Series Name | Virtu VM1 |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Hyde Park |
| Sensor Type | ultrasonic sensor |
| Sensor Design | flat form + cylindrical M18 |
| Front Material | glass epoxy |
| Device Short Name | VM1 |
| Wiring Technique | 4-wire |
Complementary
| Repeat Accuracy | 1.27 % |
|---|---|
| Height | 43.7 mm |
| Maximum Switching Current | 100 mA reverse polarity protection |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| [Sa] Assured Operating Distance | 50.8-508 mm remote teach push-button |
| Depth | 43.7 mm |
| Blind Zone | 0-51 mm |
| Length | 59.69 mm |
| Current Consumption | 40 mA |
| Beam Angle | 5 ° |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm - up to 200 mm sensing distance |
| Status Led | output not active 1 LED green) |
| Transmission Frequency | 300 kHz |
| Width | 18 mm |
| [Sn] Nominal Sensing Distance | 508-508 mm |
| [Sd] Sensing Range | 50.8-508 mm |
| Net Weight | 0.033 kg |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Standards | EN 60947 |
| Nema Degree Of Protection | NEMA 4X indoor use only) |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -30-70 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 100-100 % without condensation |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Marking | CE |
| Ip Degree Of Protection | IP67 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111225EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
