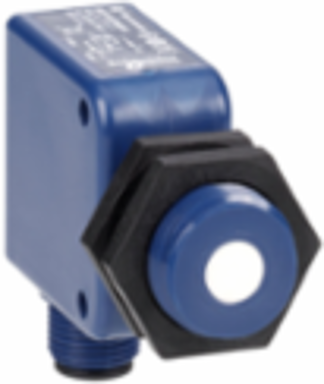

Telemecanique Sensors VM1VAQ Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 0...10 V, M12
Telemecanique Sensors VM1VAQ Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 0...10 V, M12
- MPN: VM1VAQ
- UPC: 785901546795
- PPN: TES-VM1VAQ
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$342.17/ EA
Description
This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor in a flat form, cylindrical M18 design and adjustable sensing type window. It supports 508mm nominal sensing distance and 0V to 10V autoslope analog output. It is an ultrasonic sensor with a rated supply voltage of 15V to 24V DC with overload, short circuit protection and current consumption of 40mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of Valox with glass epoxy front. Its dimensions are 65.61mm (length) x 18mm (width) x 43.7mm (height). It weighs 0.033kg. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.
Specifications
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Shock Resistance
- 30 gn in all 3 axes 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67
- Relative Humidity
- 100-100 % without condensation
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-30-70 °C
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60068-2-6
MarkingCE
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Repeat Accuracy
- 1.27 %
- Minimum Size Of Detected Object
- cylinder diameter 2.5 mm - up to 200 mm sensing distance
- Status Led
- off when object is within range 1 LED green)
- [Sa] Assured Operating Distance
- 50.8-508 mm remote teach push-button
- [Sd] Sensing Range
- 50.8-508 mm
- Net Weight
- 0.033 kg
- Beam Angle
- 5 °
- Width
- 18 mm
- [Sn] Nominal Sensing Distance
- 508-508 mm
Height43.7 mm
Maximum Switching Current40 mA reverse polarity protection
Transmission Frequency300 kHz
Blind Zone0-51 mm
Length65.61 mm
Current Consumption40 mA
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Depth43.7 mm
Specifications
- Iso Thread
- M18 x 1
- Type Of Output Signal
- analog
- Material
- plastic
- Wiring Technique
- 4-wire
- Supply Voltage Limits
- 13-28 V DC
- Electrical Connection
- male connector M12 4 pins
- Enclosure Material
- valox
- Device Short Name
- VM1
Type Of Sensing Windowadjustable
Range Of ProductHyde Park
Analogue Output Range0...10 V autoslope
Series NameVirtu VM1
Sensor Typeultrasonic sensor
Sensor Designflat form + cylindrical M18
Front Materialglass epoxy
[Us] Rated Supply Voltage15...24 V DC overload and short-circuit protection
