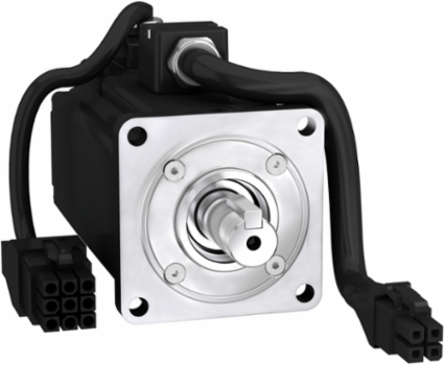

Schneider Electric BCH2LD0233CF5C Servo Motor, 60mm, 200W, 1.92 N.m Peak Torque, Keyed Shaft

  • MPN: BCH2LD0233CF5C
  • PPN: SCH-BCH2LD0233CF5C

CAD

$1126.03

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This servo motor from Schneider Electric is designed for precision and reliability in automation and motion control applications. With a compact 60mm frame and a powerful 200W output, it provides a peak torque of 1.92 N.m, making it suitable for a variety of demanding tasks. The keyed shaft enhances its versatility and ease of integration into numerous systems. This motor stands out for its efficiency and robust performance, ensuring optimal operation in sophisticated automation setups.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Switzerland, China, France, Sweden

Physical Attributes

Key Width5 mm
Shaft Length30 mm
Motor Flange Size60 mm

Complementary Attributes

Maximum Current Irms4.31 A LXM28... 0.2 kW, 220 V, 4.31 A LXM28... 0.2 kW, 110 V, 4.5 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed5000 rpm
Maximum Permanent Current1.3 A
Minimum Ambient Air Temperature For Operation0.0 °C
Line Rated Current1.3 A
Maximum Axial Force Fa70 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr200 N 3000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM28... 1.5 A, 220 V, three phase, LXM26D 1.5 A, 220 V, single phase, LXM26D 1.5 A, 220 V, three phase, LXM28... 1.5 A, 220 V, single phase LXM28... 3.6 A, 110 V, single phase, 3000 rpm
Peak Stall Torque1.92 N.m LXM28... 1.5 A, 220 V, three phase, 1.92 N.m LXM26D 1.5 A, 220 V, single phase, 1.92 N.m LXM26D 1.5 A, 220 V, three phase, 1.92 N.m LXM28... 1.5 A, 220 V, single phase1.92 N.m LXM28... 3.6 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]0.2683713004, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0132569686, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 594 kg CO2 eq., 1594.2102431081
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes70 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power200 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionfree lead
Holding Brakewith
Inertia0.16 kg.cm² of brake0.17 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter5.5 mm
Network Number Of Phases1
Number Of Motor Stacks1
Peak Nominal Torque1.92 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter14 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant1.84 ms 20 °C
Stator Resistance12.2 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint1 607 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh3253.8438
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange5.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501514040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque0.64 N.m LXM28 1.5 A, 220 V, three phase, 0.64 N.m LXM26D 1.5 A, 220 V, single phase, 0.64 N.m LXM26D 1.5 A, 220 V, three phase, 0.64 N.m LXM28 1.5 A, 220 V, single phase0.64 N.m LXM28 3.6 A, 110 V, single phase
Nominal Torque0.64 N.m LXM28... 1.5 A, 220 V, three phase0.64 N.m half speed, 0.64 N.m full speed, 0.64 N.m LXM26D 1.5 A, 220 V, single phase, 0.64 N.m LXM26D 1.5 A, 220 V, three phase, 0.64 N.m LXM28... 1.5 A, 220 V, single phase0.64 N.m LXM28... 3.6 A, 110 V, single phase
Phasethree phase, single phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.22339713
Carbon Footprint Of The Manufacturing Phase [A1 To A3]12 kg CO2 eq., 11.9212914798
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter50 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current1.11 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque1.3 N.m built-in
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles4.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia0.17 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance22.68 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.58 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total140 mm
Brake Pull-in Power11.2 W
Maximum [In] Rated Current1.3 A
Package Weight(Lbs)1.825 kg
Warranty (In Months)18

Environment Attributes Main

Product CompatibilityLXM28... servo drive 0.2 kW, 220 V, three phase, LXM26D servo drive 0.2 kW, 220 V, single phase, LXM26D servo drive 0.2 kW, 220 V, three phase, LXM28... servo drive 0.2 kW, 220 V, single phase, LXM28... servo drive 0.2 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1606.636559987
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasethree phase, single phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power200 W LXM28... 1.5 A, 220 V, three phase, 200 W LXM26D 1.5 A, 220 V, single phase, 200 W LXM26D 1.5 A, 220 V, three phase, 200 W LXM28... 1.5 A, 220 V, single phase200 W LXM28... 3.6 A, 110 V, single phase
Output Current 3s Peak4.5 A
