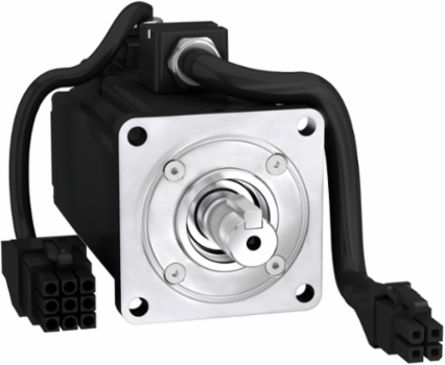

Schneider Electric BCH2LD0431CF5C servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cm², without oil seal, with key, brake, leads connection
Schneider Electric BCH2LD0431CF5C servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cm², without oil seal, with key, brake, leads connection
- MPN: BCH2LD0431CF5C
- PPN: SCH-BCH2LD0431CF5C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1146.02/ EA
Description
servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cm², without oil seal, with key, brake, leads connection
Specifications
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
Complementary
- Circle Diameter Of The Mounting Holes
- 70 mm
- Continuous Power
- 400 W
- Product Compatibility
- LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
- Holding Torque
- 1.3 N.m built-in
- Electrical Connection
- free lead
- Number Of Motor Stacks
- 2
- Back Emf Constant
- 35 V/krpm 20 °C
- Centring Collar Depth
- 5.5 mm
- Shaft Length
- 30 mm
- Network Number Of Phases
- three phase || single phase
- Length
- 165 mm
- Centring Collar Diameter
- 50 mm
- Motor Flange Size
- 60 mm
- Nominal Output Power
- 400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
- Number Of Mounting Holes
- 4
- Shaft Diameter
- 14 mm
- Mounting Holes Diameter
- 5.5 mm
- Shaft End
- keyed
- Feedback Type
- 20 bits single turn absolute encoder
- Continuous Stall Current
- 2.19 A
- Torque Constant
- 0.58 N.m/A 20 °C
Maximum Permanent Current2.5 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant2.31 ms 20 °C
Maximum Radial Force Fr200 N 3000 rpm
Mounting Supportasian standard flange
Rotor Inertia0.28 kg.cm²
Maximum Axial Force Fa70 N
Holding Brakewith
Brake Pull-In Power11.2 W
Maximum Current Irms7.76 A LXM28... 0.4 kW, 220 V || 7.76 A LXM28... 0.4 kW, 110 V
Net Weight2 kg
Stator Inductance12 mH 20 °C
[Us] Rated Supply Voltage220 V || 110 V
Peak Stall Torque3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Distance Shaft Shoulder-Flange5.5 mm
Key Width5 mm
Type Of Coolingnatural convection
Nominal Speed3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Stator Resistance5.2 Ohm 20 °C
Nominal Torque1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Continuous Stall Torque1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Environment
- Ambient Air Temperature For Operation
- 0-40 °C
Ip Degree Of ProtectionIP54 IM B5, IM V1 || IP50 IM V3
