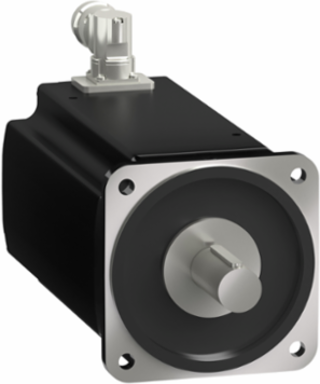

Schneider Electric BMH1904P32A2A Lexium 32 Servo Motor 100Nm 3000rpm IP65/IP67 Keyed Shaft
- MPN: BMH1904P32A2A
- PPN: SCH-BMH1904P32A2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and robustness, the Lexium 32 Servo Motor from Schneider Electric excels in demanding automation and motion control applications. With an impressive torque output of 100Nm and a maximum speed of 3000rpm, this motor is designed to deliver high performance even in challenging environments, as evidenced by its IP65/IP67 rating for dust and water resistance. The inclusion of a keyed shaft enhances its versatility and enables reliable connections in various setups, making it an ideal choice for industries looking to optimize their operational efficiency.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 16000 W
- Continuous Stall Torque
- 100 N.m
- Maximum Mechanical Speed
- 3000 rpm
- Continuous Stall Current
- 40 A
- Maximum Permanent Current
- 100 A
- Phase
- Three phase
- Back Emf Constant
- 168 V/krpm
- Stator Resistance
- 0.16 Ohm
- Stator Electrical Time Constant
- 29.6 ms
- Maximum Axial Force
- 0.2 x Fr
- Shaft Diameter
- 38 mm
- Key Width
- 10 mm
- Centring Collar Diameter
- 180 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 215 mm
- Mounting Support
- International standard flange
- Number Of Motor Stacks
- 4
- Type
- Servo motor
- Degree Of Protection
- IP65 standard, IP20 with fan module
- Compliance
- RoHS, Mercury free, PVC free, REACh compliant
- PVC Free
- Yes
- Range Compatibility
- Lexium 32
Peak Stall Torque230 N.m
Nominal Torque76.4 N.m
Nominal Speed2000 rpm
Maximum Current Irms100 A
Rated Supply Voltage480 V
Torque Constant2.5 N.m/A
Number Of Motor Poles10
Stator Inductance4.74 mH
Maximum Radial Force3800 N (1000 rpm), 3700 N (2000 rpm), 3600 N (3000 rpm)
Length449.5 mm
Shaft Length80 mm
Motor Flange Size190 mm
Centring Collar Depth4 mm
Mounting Holes Diameter14 mm
Shaft EndKeyed
Electrical ConnectionRotatable right-angled connectors
Rotor Inertia276.7 kg.cm²
Feedback TypeSingle turn SinCos Hiperface
Type Of CoolingFan
Mercury FreeYes
Country Of OriginGermany
