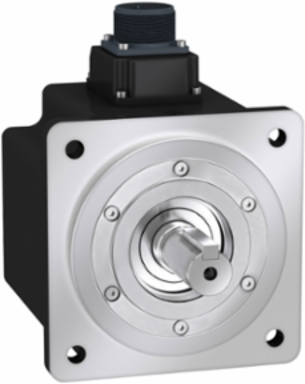

Schneider Electric BCH2MM1023CA6C Lexium 28 Servo Motor, 130mm, 1000W, 7kg, IP65, Keyed Shaft
- MPN: BCH2MM1023CA6C
- PPN: SCH-BCH2MM1023CA6C
CAD
$1572.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque and speed of rotation (2000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 5.77A and a continuous power of 1000W. The shaft dimensions are 22mm (Diameter) x 55mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 147mm (Length) x 130mm (Width), centring collar dimensions are 8mm (Depth) x 110mm (Diameter) with 145mm circle diameter of the mounting hole. It weighs 7kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 130mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, France, Mexico, Sweden
Physical Attributes
- Key Width
- 8 mm
- Shaft Length
- 55 mm
Motor Flange Size130 mm
Complementary Attributes
- Maximum Current Irms
- 19.64 A LXM28... 1 kW, 220 V, 20.0 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Permanent Current
- 6.29 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current6.29 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr670 N 2000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Speed
- LXM28... 7 A, 220 V, three phase LXM26D 7 A, 220 V, single phase, LXM26D 7 A, 220 V, three phase, LXM28... 7 A, 220 V, single phase, 2000 rpm
- Peak Stall Torque
- 14.3 N.m LXM28... 7 A, 220 V, three phase14.3 N.m LXM26D 7 A, 220 V, single phase, 14.3 N.m LXM26D 7 A, 220 V, three phase, 14.3 N.m LXM28... 7 A, 220 V, single phase
- Saturation Coefficient
- -3.8243890773E-18, -3.8243890773E-18
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.8667379036
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 46 kg CO2 eq., 46.2523183857
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504002EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2444
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 110 mm
- Coefficient 1 2
- 5.62440546E-19 N.m/rpm²
- Coefficient 1 6
- 3.2E-34 N.m/rpm6
- Coefficient 2 1
- 8.75000000000026E-06 N.m/rpm
- Continuous Stall Current
- 5.77 A
- Derating Temperature Scale
- 40.0 °C
- Device Short Name
- BCH2
- Feedback Type
- 20 bits single turn absolute encoder
- Inertia
- 0.0 kg.cm² of brake6.62 kg.cm² of motor
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Holes Diameter
- 9.2 mm
- Network Number Of Phases
- 1
- Number Of Motor Stacks
- 1
- Peak Nominal Torque
- 14.3 N.m
- Product Or Component Type
- servo motor
- Returnability
- No
- Shaft Diameter
- 22 mm
- Sizing Reference
- BCH2
- Stator Electrical Time Constant
- 11.94 ms 20 °C
- Stator Resistance
- 0.62 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 4 167 kg CO2 eq.
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 8405.804
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Us] Rated Supply Voltage
- 220 V
- Brake Pull-in Power
- 19.7 W
- Maximum [In] Rated Current
- 6.29 A
- Package Weight(Lbs)
- 7.821 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque4.77 N.m LXM28 7 A, 220 V, three phase4.77 N.m LXM26D 7 A, 220 V, single phase, 4.77 N.m LXM26D 7 A, 220 V, three phase, 4.77 N.m LXM28 7 A, 220 V, single phase
Nominal Torque4.77 N.m LXM28... 7 A, 220 V, three phase, 4.77 N.m half speed, 4.77 N.m full speed, 4.77 N.m LXM26D 7 A, 220 V, single phase, 4.77 N.m LXM26D 7 A, 220 V, three phase, 4.77 N.m LXM28... 7 A, 220 V, single phase
Phasethree phase, single phase
Carbon Footprint Of The Distribution Phase [A4]1.0412290359, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0514344888, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 118 kg CO2 eq., 4118.3964756879
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes145 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power1000 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewithout
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia6.63 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance7.14 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.83 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total147 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange8 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4166.6081955018
- Environmental Disclosure
- ENVPEP1504002EN
- Ip Degree Of Protection
- IP50 IM V3IP65 IM B5, IM V1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityLXM28... servo drive 1 kW, 220 V, three phaseLXM26D servo drive 1 kW, 220 V, single phase, LXM26D servo drive 1 kW, 220 V, three phase, LXM28... servo drive 1 kW, 220 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 1000 W LXM28... 7 A, 220 V, three phase1000 W LXM26D 7 A, 220 V, single phase, 1000 W LXM26D 7 A, 220 V, three phase, 1000 W LXM28... 7 A, 220 V, single phase
Output Current 3s Peak20.0 A
