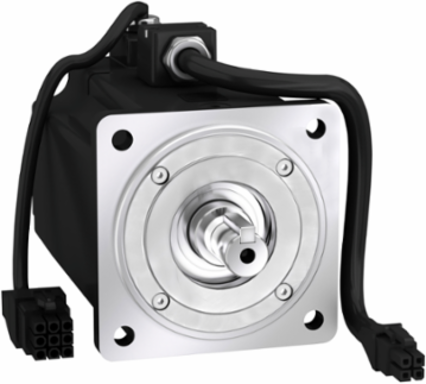

Schneider Electric BCH2LF0431CA5C Lexium 28 Servo Motor 80mm 400W IP54 5000RPM
- MPN: BCH2LF0431CA5C
- PPN: SCH-BCH2LF0431CA5C
CAD
$829.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 2.29A and a continuous power of 400W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with free lead for electrical connection. It is an IP50 and IP54 rated product. The length of this product is 112mm and the centering collar dimensions are 4mm (depth) x 70mm (diameter) with 90mm mounting hole. It weighs 2kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM28 servo drive motor at 0.4kW 220V single phase and LXM28 servo drive motor. It supports 80mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden, United States
Physical Attributes
- Key Width
- 5 mm
- Shaft Length
- 30 mm
Motor Flange Size80 mm
Complementary Attributes
- Maximum Current Irms
- 7.73 A LXM28... 0.4 kW, 220 V, 7.73 A LXM28... 0.4 kW, 110 V, 7.8 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 2.52 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current2.52 A
Maximum Axial Force Fa115 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr332 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Speed
- LXM28... 2.6 A, 220 V, single phase, LXM28... 2.6 A, 220 V, three phase LXM28... 5.7 A, 110 V, single phase, 3000 rpm
- Peak Stall Torque
- 3.81 N.m LXM28... 2.6 A, 220 V, single phase, 3.81 N.m LXM28... 2.6 A, 220 V, three phase3.81 N.m LXM28... 5.7 A, 110 V, single phase
- Saturation Coefficient
- -3.8243890773E-18, -3.8243890773E-18
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3193360426, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0157745179
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 390 kg CO2 eq., 2390.0428749245
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 90 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 400 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- free lead
- Holding Brake
- without
- Maximum Operational Altitude
- 1000.0 m
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- asian standard flange
- Number Of Motor Poles
- 4.0
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Rotor Inertia
- 0.67 kg.cm²
- Shaft End
- keyed
- Software Version
- EIME v5.6.0.1
- Stator Inductance
- 11.3 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.55 N.m/A 20 °C
- Type Of Cooling
- natural convection
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Length Total
- 112 mm
- Brake Pull-in Power
- 10.2 W
- Maximum [In] Rated Current
- 2.52 A
- Package Weight(Lbs)
- 2.47 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque1.27 N.m LXM28 2.6 A, 220 V, single phase, 1.27 N.m LXM28 2.6 A, 220 V, three phase1.27 N.m LXM28 5.7 A, 110 V, single phase
Nominal Torque1.27 N.m half speed, 1.27 N.m full speed, 1.27 N.m LXM28... 2.6 A, 220 V, single phase, 1.27 N.m LXM28... 2.6 A, 220 V, three phase1.27 N.m LXM28... 5.7 A, 110 V, single phase
Phasesingle phase, three phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2658211043, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 14.185190583
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter70 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current2.29 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake0.66 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter6.6 mm
Network Number Of Phases1
Number Of Motor Stacks1
Peak Nominal Torque3.81 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter14 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant3.53 ms 20 °C
Stator Resistance3.2 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint2 405 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh4878.1685
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501514040
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2404.8289971722
- Environmental Disclosure
- ENVPEP1504002EN
- Ip Degree Of Protection
- IP54 IM B5, IM V1IP50 IM V3
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityLXM28... servo drive 0.4 kW, 220 V, single phase, LXM28... servo drive 0.4 kW, 220 V, three phase, LXM28... servo drive 0.4 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase, three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 400 W LXM28... 2.6 A, 220 V, single phase, 400 W LXM28... 2.6 A, 220 V, three phase400 W LXM28... 5.7 A, 110 V, single phase
Output Current 3s Peak7.8 A
