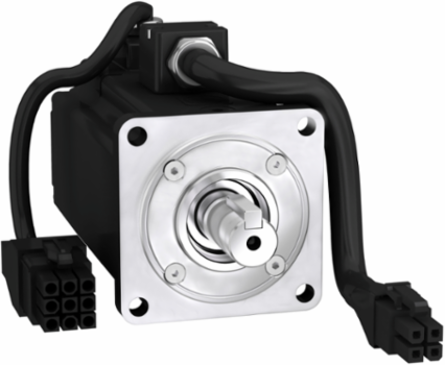

Schneider Electric BCH2LD0432CA5C servo motor BCH, Lexium 28, 60mm, 400W, 0.27kg.cm², with oil seal, smooth, leads connection
Schneider Electric BCH2LD0432CA5C servo motor BCH, Lexium 28, 60mm, 400W, 0.27kg.cm², with oil seal, smooth, leads connection
- MPN: BCH2LD0432CA5C
- PPN: SCH-BCH2LD0432CA5C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$771.95/ EA
Description
servo motor BCH, Lexium 28, 60mm, 400W, 0.27kg.cm², with oil seal, smooth, leads connection
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1504002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 70 mm
- Continuous Power
- 400 W
- Product Compatibility
- LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
- Maximum Radial Force Fr
- 200 N 3000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 0.27 kg.cm²
- Maximum Axial Force Fa
- 70 N
- Holding Brake
- without
- Brake Pull-In Power
- 11.2 W
- Maximum Current Irms
- 7.76 A LXM28... 0.4 kW, 220 V || 7.76 A LXM28... 0.4 kW, 110 V
- Net Weight
- 1.45 kg
- Stator Inductance
- 12 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V || 110 V
- Peak Stall Torque
- 3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
- Distance Shaft Shoulder-Flange
- 5.5 mm
- Mounting Holes Diameter
- 5.5 mm
- Shaft End
- smooth shaft
- Feedback Type
- 20 bits single turn absolute encoder
- Continuous Stall Current
- 2.19 A
- Torque Constant
- 0.58 N.m/A 20 °C
Maximum Permanent Current2.5 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant2.31 ms 20 °C
Electrical Connectionfree lead
Number Of Motor Stacks2
Back Emf Constant35 V/krpm 20 °C
Centring Collar Depth5.5 mm
Shaft Length30 mm
Network Number Of Phasesthree phase || single phase
Length129 mm
Centring Collar Diameter50 mm
Motor Flange Size60 mm
Nominal Output Power400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Number Of Mounting Holes4
Shaft Diameter14 mm
Type Of Coolingnatural convection
Nominal Speed3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Stator Resistance5.2 Ohm 20 °C
Nominal Torque1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Continuous Stall Torque1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
