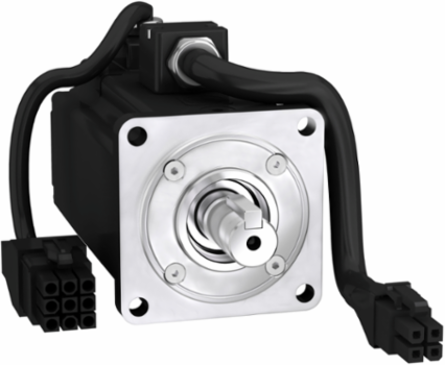

Schneider Electric BCH2LD0430CF5C servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cm², without oil seal, smooth, brake, leads connection
Schneider Electric BCH2LD0430CF5C servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cm², without oil seal, smooth, brake, leads connection
- MPN: BCH2LD0430CF5C
- PPN: SCH-BCH2LD0430CF5C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1071.78/ EA
Description
servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cm², without oil seal, smooth, brake, leads connection
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 70 mm
- Continuous Power
- 400 W
- Product Compatibility
- LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
- Holding Torque
- 1.3 N.m built-in
- Electrical Connection
- free lead
- Number Of Motor Stacks
- 2
- Back Emf Constant
- 35 V/krpm 20 °C
- Centring Collar Depth
- 5.5 mm
- Shaft Length
- 30 mm
- Network Number Of Phases
- single phase || three phase
- Length
- 165 mm
- Centring Collar Diameter
- 50 mm
- Motor Flange Size
- 60 mm
- Nominal Output Power
- 400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
- Number Of Mounting Holes
- 4
- Shaft Diameter
- 14 mm
- Type Of Cooling
- natural convection
- Nominal Speed
- 3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
- Stator Resistance
- 5.2 Ohm 20 °C
- Nominal Torque
- 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
- Continuous Stall Torque
- 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Maximum Permanent Current2.5 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant2.31 ms 20 °C
Maximum Radial Force Fr200 N 3000 rpm
Mounting Supportasian standard flange
Rotor Inertia0.28 kg.cm²
Maximum Axial Force Fa70 N
Holding Brakewith
Brake Pull-In Power11.2 W
Maximum Current Irms7.76 A LXM28... 0.4 kW, 220 V || 7.76 A LXM28... 0.4 kW, 110 V
Net Weight2 kg
Stator Inductance12 mH 20 °C
[Us] Rated Supply Voltage220 V || 110 V
Peak Stall Torque3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Distance Shaft Shoulder-Flange5.5 mm
Mounting Holes Diameter5.5 mm
Shaft Endsmooth shaft
Feedback Type20 bits single turn absolute encoder
Continuous Stall Current2.19 A
Torque Constant0.58 N.m/A 20 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Environment
- Ambient Air Temperature For Operation
- 0-40 °C
Ip Degree Of ProtectionIP54 IM B5, IM V1 || IP50 IM V3
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
