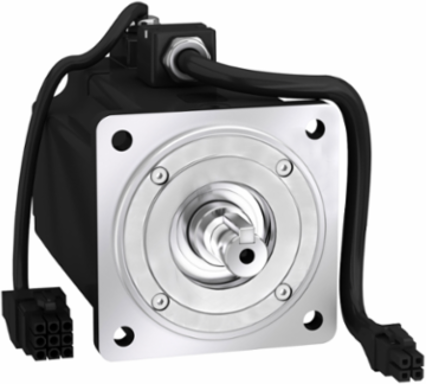

Schneider Electric BCH2LF0432CA5C servo motor BCH, Lexium 28, 80mm, 400W, 0.67kg.cm², with oil seal, smooth, leads connection
Schneider Electric BCH2LF0432CA5C servo motor BCH, Lexium 28, 80mm, 400W, 0.67kg.cm², with oil seal, smooth, leads connection
- MPN: BCH2LF0432CA5C
- PPN: SCH-BCH2LF0432CA5C
- UNSPSC: 26101205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$789.23/ EA
Description
servo motor BCH, Lexium 28, 80mm, 400W, 0.67kg.cm², with oil seal, smooth, leads connection
Specifications
Physical Attributes
- Motor Flange Size
- 80 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Current IRMS
- 7.73 A LXM28... 0.4 kW, 220 V, 7.73 A LXM28... 0.4 kW, 110 V, 7.8 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 2.52 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current2.52 A
Maximum Axial Force FA115 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force FR332 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Inertia
- 0.0 kg.cm² of brake, 0.66 kg.cm² of motor
- Nominal Torque
- 1.27 N.m half speed, 1.27 N.m full speed, 1.27 N.m LXM28... 2.6 A, 220 V, single phase, 1.27 N.m LXM28... 2.6 A, 220 V, three phase, 1.27 N.m LXM28... 5.7 A, 110 V, single phase
- Phase
- three phase, single phase
- Us Rated Supply Voltage2
- 220 V, 110 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.3 kg CO2 eq., 0.2658211043
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 14 kg CO2 eq., 14.185190583
- Local Data Status
- Publishable
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504002EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Brake Pull In Power
- 10.2 W
- Circle Diameter Of The Mounting Holes
- 90 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 400 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Distance Shaft Shoulder Flange
- 4 mm
- Feedback Type
- 20 bits single turn absolute encoder
- Maximum Operational Altitude
- 1000.0 m
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 6.6 mm
- Package Weight Lbs
- 2.475 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shaft Diameter
- 14 mm
- Sizing Reference
- BCH2
- Stator Inductance
- 11.3 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.55 N.m/A 20 °C
- Type Of Cooling
- natural convection
- Maximum In Rated Current2
- 2.52 A
- Stocking Flag
- Y
- Accuracy Error Angular3
- 0.044 °
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Unit
- unité (unit)
- Energy Model Installation A5 2
- Electricity mix; AC; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; < 1kV; EU-27
- Maximum In Rated Current5
- 2.52 A
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque1.27 N.m LXM28 2.6 A, 220 V, single phase, 1.27 N.m LXM28 2.6 A, 220 V, three phase, 1.27 N.m LXM28 5.7 A, 110 V, single phase
Nominal Speed3000 rpm LXM28... 2.6 A, 220 V, single phase, 3000 rpm LXM28... 2.6 A, 220 V, three phase, 3000 rpm LXM28... 5.7 A, 110 V, single phase, 3000 rpm
Peak Stall Torque3.81 N.m LXM28... 2.6 A, 220 V, single phase, 3.81 N.m LXM28... 2.6 A, 220 V, three phase, 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase A40.3193360426, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0157745179, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B62 390 kg CO2 eq., 2390.0428749245
Local Publishable Date2026-01-12
ServiceabilityYes
Field Service DivisionIDIBS
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Centring Collar Diameter70 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current2.29 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Electrical Connectionfree lead
Holding Brakewithout
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Supportasian standard flange
Peak Nominal Torque3.81 N.m
Product Or Component Typeservo motor
Rotor Inertia0.67 kg.cm²
Shaft Endsmooth shaft
Stator Electrical Time Constant3.53 ms 20 °C
Stator Resistance3.2 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet RT20 °C
Total Lifecycle Carbon Footprint2 405 kg CO2 eq.
Accuracy Error Angular20.044 °
Medium Descservo motor BCH, Lexium 28, 80mm, 400W, 0.67kg.cm², with oil seal, smooth, leads connection
Product Kit IdentifierN
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Energy Model Manufacturing A1 A3 2Energy model used: China
Energy Model Use B6 2Electricity mix; AC; < 1kV; EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP50 IM V3, IP65 IM B5, IM V1
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2404.8289971722
- Circularity Profile
- ENVEOLI1504002EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1504002EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Product CompatibilityLXM28... servo drive 0.4 kW, 220 V, single phase, LXM28... servo drive 0.4 kW, 220 V, three phase, LXM28... servo drive 0.4 kW, 110 V, single phase
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-20-40 °C
Environmental DisclosureENVPEP1504002EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase, single phase
Product Or Component Typeservo motor
Output Attributes
- Nominal Output Power
- 400 W LXM28... 2.6 A, 220 V, single phase, 400 W LXM28... 2.6 A, 220 V, three phase, 400 W LXM28... 5.7 A, 110 V, single phase
Output Current 3s Peak7.8 A
