Schneider Electric BCH2LF0733CF5C Lexium 28 Servo Motor 80mm, 750W, 3.6kg, 5000RPM, IP65
- MPN: BCH2LF0733CF5C
- PPN: SCH-BCH2LF0733CF5C
CAD
$1415.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

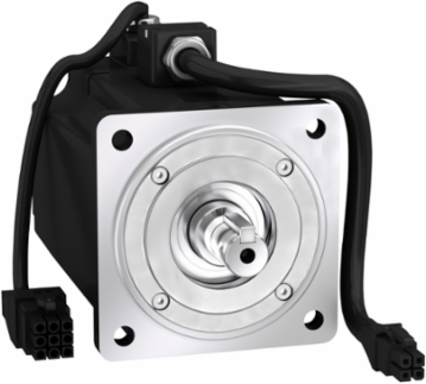

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 178mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 3.6kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Switzerland, China, France, Sweden |
|---|
Physical Attributes
| Key Width | 6 mm |
|---|---|
| Shaft Length | 35 mm |
| Motor Flange Size | 80 mm |
|---|
Complementary Attributes
| Maximum Current Irms | 13.23 A LXM28... 0.75 kW, 220 V, 13.23 A LXM28... 0.75 kW, 110 V, 13.5 A |
|---|---|
| Maximum Ambient Air Temperature For Operation | 40.0 °C |
| Maximum Mechanical Speed | 5000 rpm |
| Maximum Permanent Current | 4.29 A |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Line Rated Current | 4.29 A |
|---|---|
| Maximum Axial Force Fa | 115 N |
| Maximum Operational Altitude | 1000.0 m |
| Maximum Radial Force Fr | 332 N 3000 rpm |
| Minimum Operational Altitude | 0.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Coefficient 1 1 | -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm |
| Coefficient 1 5 | -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5 |
| Nominal Speed | LXM28... 4.5 A, 220 V, three phase, LXM26D 4.5 A, 220 V, single phase, LXM26D 4.5 A, 220 V, three phase, LXM28... 4.5 A, 220 V, single phase LXM28... 9 A, 110 V, single phase, 3000 rpm |
| Peak Stall Torque | 7.16 N.m LXM28... 4.5 A, 220 V, three phase, 7.16 N.m LXM26D 4.5 A, 220 V, single phase, 7.16 N.m LXM26D 4.5 A, 220 V, three phase, 7.16 N.m LXM28... 4.5 A, 220 V, single phase7.16 N.m LXM28... 9 A, 110 V, single phase |
| Saturation Coefficient | -3.8243890773E-18, -3.8243890773E-18 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5806109865, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0286809417 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 318 kg CO2 eq., 3317.7034249803 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 90 mm |
| Coefficient 1 4 | 7.11E-26 N.m/rpm4 |
| Coefficient 2 0 | 0 N.m |
| Continuous Power | 750 W |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | free lead |
| Holding Brake | with |
| Inertia | 1.58 kg.cm² of brake1.24 kg.cm² of motor |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Motor Figures | 230.0 V |
| Mounting Holes Diameter | 6.6 mm |
| Network Number Of Phases | 1 |
| Number Of Motor Stacks | 2 |
| Peak Nominal Torque | 7.16 N.m |
| Product Or Component Type | servo motor |
| Returnability | No |
| Shaft Diameter | 19 mm |
| Sizing Reference | BCH2 |
| Stator Electrical Time Constant | 4.07 ms 20 °C |
| Stator Resistance | 1.5 Ohm 20 °C |
| Temperature Copper Hot | 135 °C |
| Temperature Magnet Rt | 20 °C |
| Total Lifecycle Carbon Footprint | 3 345 kg CO2 eq. |
| Pep Code | ENVPEP1504002EN |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 6771.559 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Accuracy Error [Angular] | 0.044 ° |
| Distance Shaft Shoulder-flange | 4 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501524000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Coefficient 1 3 | -2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3 |
| Continuous Stall Torque | 2.39 N.m LXM28 4.5 A, 220 V, three phase, 2.39 N.m LXM26D 4.5 A, 220 V, single phase, 2.39 N.m LXM26D 4.5 A, 220 V, three phase, 2.39 N.m LXM28 4.5 A, 220 V, single phase2.39 N.m LXM28 9 A, 110 V, single phase |
| Nominal Torque | 2.39 N.m LXM28... 4.5 A, 220 V, three phase2.39 N.m half speed, 2.39 N.m full speed, 2.39 N.m LXM26D 4.5 A, 220 V, single phase, 2.39 N.m LXM26D 4.5 A, 220 V, three phase, 2.39 N.m LXM28... 4.5 A, 220 V, single phase2.39 N.m LXM28... 9 A, 110 V, single phase |
| Phase | single phase, three phase |
| [Us] Rated Supply Voltage | 220 V, 110 V |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4833110987, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 26 kg CO2 eq., 25.7912556054 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1504002EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2444 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 70 mm |
| Coefficient 1 2 | 5.62440546E-19 N.m/rpm² |
| Coefficient 1 6 | 3.2E-34 N.m/rpm6 |
| Coefficient 2 1 | 8.75000000000026E-06 N.m/rpm |
| Continuous Stall Current | 4.01 A |
| Derating Temperature Scale | 40.0 °C |
| Device Short Name | BCH2 |
| Feedback Type | 20 bits single turn absolute encoder |
| Holding Torque | 2.5 N.m built-in |
| Maximum Operational Altitude | 1000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Motor Voltage Drop Coefficient | 1 |
| Mounting Support | asian standard flange |
| Number Of Motor Poles | 4.0 |
| Number Of Mounting Holes | 4 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 28 |
| Rotor Inertia | 1.24 kg.cm² |
| Shaft End | keyed |
| Software Version | EIME v5.6.0.1 |
| Stator Inductance | 6.1 mH 20 °C |
| Sustainable Packaging | No |
| Temperature Magnet Hot | 100 °C |
| Torque Constant | 0.6 N.m/A 20 °C |
| Type Of Cooling | natural convection |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Length Total | 178 mm |
| Brake Pull-in Power | 10.2 W |
| Maximum [In] Rated Current | 4.29 A |
| Package Weight(Lbs) | 4.008 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | LXM28... servo drive 0.75 kW, 220 V, three phase, LXM26D servo drive 0.75 kW, 220 V, single phase, LXM26D servo drive 0.75 kW, 220 V, three phase, LXM28... servo drive 0.75 kW, 220 V, single phase, LXM28... servo drive 0.75 kW, 110 V, single phase |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-40 °C |
| Environmental Disclosure | ENVPEP1504002EN |
| Ip Degree Of Protection | IP50 IM V3IP65 IM B5, IM V1 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 3344.5872836125 |
| Circularity Profile | ENVEOLI1504002EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1504002EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | single phase, three phase |
|---|---|
| Range Of Product | Lexium 28 |
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 750 W LXM28... 4.5 A, 220 V, three phase, 750 W LXM26D 4.5 A, 220 V, single phase, 750 W LXM26D 4.5 A, 220 V, three phase, 750 W LXM28... 4.5 A, 220 V, single phase750 W LXM28... 9 A, 110 V, single phase |
|---|
| Output Current 3s Peak | 13.5 A |
|---|
