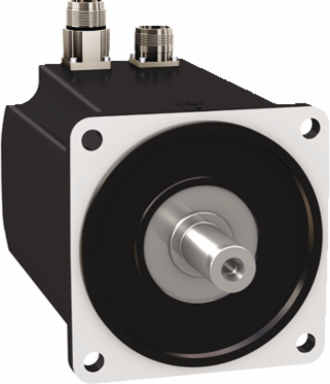

Schneider Electric BMH1401P36A1A Lexium 32 Servo Motor 10.3Nm 4000rpm Keyed Shaft IP65/IP67
- MPN: BMH1401P36A1A
- PPN: SCH-BMH1401P36A1A
CAD
$2459.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric is engineered for high-performance automation and control applications, boasting a robust torque output of 10.3 Nm and a maximum speed of 4000 rpm. This motor features a keyed shaft for secure coupling, ensuring reliable operation in various motion control settings. With an IP65/IP67 rating, it offers superior protection against dust and moisture, making it ideal for use in demanding industrial environments. Its efficiency and durability make this servo motor a valuable component for enhancing operational capabilities in automated systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 10.3 N.m
- Nominal Output Power
- 1450 W (230 V single phase), 2400 W (400-480 V three phase)
- Nominal Speed
- 2000 rpm (230 V single phase), 3000 rpm (400-480 V three phase)
- Continuous Stall Current
- 8.58 A
- Rated Supply Voltage
- 480 V
- Torque
- 10.3 N.m
- Back EMF Constant
- 77.4 V/krpm
- Rotor Inertia
- 16.46 kg.cm²
- Stator Inductance
- 6.7 mH
- Maximum Radial Force
- 1930 N (1000 rpm), 1530 N (2000 rpm), 1340 N (3000 rpm)
- Cooling Type
- Natural convection
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 40 mm (1.57 in)
- Number Of Mounting Holes
- 4
- Mounting Holes Circle Diameter
- 165 mm (6.50 in)
- Centring Collar Diameter
- 130 mm (5.12 in)
- Net Weight
- 8 kg (17.64 lb)
- Electrical Connection
- straight connectors
- Compliance
- REACH, RoHS, China RoHS, PVC free, Mercury Free, EU RoHS compliant
- Feedback Type
- single turn SinCos Hiperface
- Mounting Support
- international standard flange
Peak Stall Torque30.8 N.m
Nominal Torque6.9 N.m (230 V single phase), 7.7 N.m (400-480 V three phase)
Maximum Speed4000 rpm
Maximum Current Irms29.8 A
Phasethree phase
Torque Constant1.2 N.m/A
Number Of Motor Poles10
Stator Resistance0.69 Ohm
Stator Electrical Time Constant9.7 ms
Maximum Axial Force0.2 x Radial Force
Shaft TypeKeyed
Shaft Length50 mm (1.97 in)
Motor Flange Size140 mm (5.51 in)
Mounting Holes Diameter11 mm (0.43 in)
Length152 mm (5.98 in)
Centring Collar Depth3.5 mm (0.14 in)
Holding Brakewithout
Range CompatibilityLexium 32
Device Short NameBMH
Product Or Component Typeservo motor
Second Shaftwithout second shaft end
