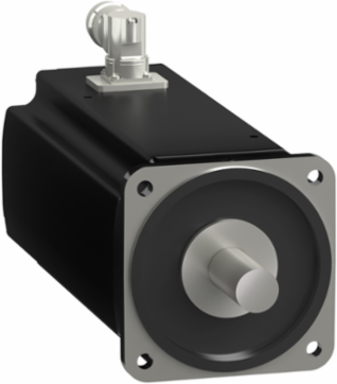

Schneider Electric BMH1904P21F2A Lexium 32 Servo Motor 100Nm 3000rpm IP65 IP67
- MPN: BMH1904P21F2A
- PPN: SCH-BMH1904P21F2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for high-performance motion control applications, this Schneider Electric Lexium 32 Servo Motor stands out with its impressive torque output of 100Nm and a capable speed of 3000rpm. Engineered to operate in challenging environments, it boasts a robust IP65 and IP67 rating, ensuring reliable performance even in dusty or wet conditions. Ideal for a variety of automation and control scenarios, this servo motor integrates seamlessly into your systems, offering precise control and efficiency that meet the demands of modern industrial applications.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 230 N.m
- Nominal Torque
- 46.8 N.m
- Nominal Speed
- 2000 rpm
- Continuous Stall Current
- 40 A
- Maximum Permanent Current
- 100 A
- Brake Pull-In Power
- 40 W
- Phase
- Three phase
- Feedback Type
- Single turn SinCos Hiperface
- Back EMF Constant
- 168 V/krpm 120 °C
- Stator Inductance
- 4.74 mH 20 °C
- Maximum Radial Force
- 3800 N at 1000 rpm, 3700 N at 2000 rpm, 3600 N at 3000 rpm
- Shaft Diameter
- 38 mm (1.50 in)
- Key Width
- 10 mm (0.39 in)
- Length
- 456 mm (17.95 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Number of Motor Poles
- 10
- Electrical Connection
- Rotatable right-angled connectors
- Shaft End
- Smooth shaft
- Rotor Inertia
- 298.2 kg.cm²
- IP Degree of Protection
- IP65 standard, IP67 with kit
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Weee
- Dispose per EU waste collection requirements
- Mercury Free
- Yes
- Brand
- Lexium 32
Continuous Stall Torque100 N.m
Nominal Output Power9800 W
Maximum Mechanical Speed3000 rpm
Maximum Current Irms100 A
Holding Torque80 N.m
Voltage480 V
Speed Feedback Resolution131072 points/turn
Torque Constant2.5 N.m/A 120 °C
Stator Resistance0.16 Ohm 20 °C
Stator Electrical Time Constant29.6 ms 20 °C
Maximum Axial Force0.2 x Maximum Radial Force
Shaft Length80 mm (3.15 in)
Motor Flange Size190 mm (7.48 in)
Centring Collar Diameter180 mm (7.09 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Number of Motor Stacks4
Mounting SupportInternational standard flange
Second ShaftWithout second shaft end
Type of CoolingNatural convection
Environmental DisclosureENVPEP111049EN
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (out of EU RoHS scope)
Reach RegulationContains Substances of Very High Concern
Product TypeServo motor
Device Short NameBMH
