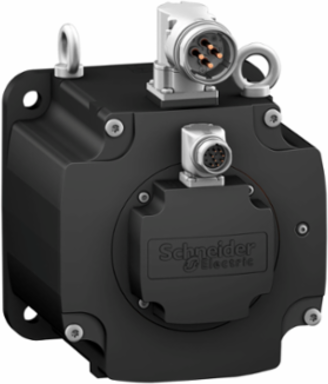

Schneider Electric BMH1903P31F2A Lexium 32 Servo Motor, 65Nm Torque, 3500rpm, IP65/IP67
- MPN: BMH1903P31F2A
- PPN: SCH-BMH1903P31F2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Lexium 32 Servo Motor from Schneider Electric is a robust solution designed for precise motion control in automation applications. With a high torque rating of 65Nm and capable of reaching rotational speeds of 3500rpm, this servo motor is built to deliver reliable performance under demanding conditions. Its IP65/IP67 protection rating ensures that it remains resilient against dust and water ingress, making it suitable for use in various environments. This motor is an excellent choice for engineers seeking efficient and dependable components for their motion control systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 43.2 N.m, 57.6 N.m, 65 N.m
- Nominal Output Power
- 5700 W, 7330 W, 7750 W
- Nominal Speed
- 1500 rpm, 2000 rpm
- Supply Voltage
- 400 V, 480 V
- Continuous Stall Current
- 36.1 A
- Maximum Permanent Current
- 124.5 A
- Brake Pull-in Power
- 40 W
- Maximum Axial Force
- 0.2 x Radial Force
- Back EMF Constant
- 129.2 V/krpm at 120 °C
- Stator Inductance
- 3.62 mH at 20 °C
- Number Of Motor Poles
- 10
- Length
- 370 mm (14.57 in)
- Shaft Length
- 80 mm (3.15 in)
- Motor Flange Size
- 190 mm (7.48 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Number Of Mounting Holes
- 4
- Shaft End
- Keyed
- Type Of Cooling
- Natural convection
- Mercury Free
- Yes
- REACH Compliance
- Contains SVHC above threshold
- Environmental Disclosure
- ENVPEP111049EN
- Feedback Type
- Single turn SinCos Hiperface
- Product Type
- Servo motor
Peak Stall Torque122.8 N.m, 141.3 N.m, 162.7 N.m
Nominal Torque35 N.m, 36 N.m, 37 N.m
Maximum Mechanical Speed3500 rpm
PhaseThree phase
Maximum Current Irms72 A
Holding Torque80 N.m with holding brake
Maximum Radial Force4500 N at 1000 rpm
Torque Constant1.8 N.m/A at 120 °C
Stator Resistance0.13 Ohm at 20 °C
Stator Electrical Time Constant27.8 ms at 20 °C
Rotor Inertia208.8 kg.cm²
Shaft Diameter38 mm (1.50 in)
Key Width70 mm (2.76 in)
Centring Collar Diameter180 mm (7.09 in)
Mounting Holes Diameter14 mm (0.55 in)
Circle Diameter Of The Mounting Holes215 mm (8.46 in)
Electrical ConnectionRotatable right-angled connectors
IP Degree Of ProtectionIP65 standard, IP67 with kit
PVC FreeYes
RoHS CompliantYes, proactive compliance
Warranty18 months
Device Short NameBMH
Mounting SupportInternational standard flange
