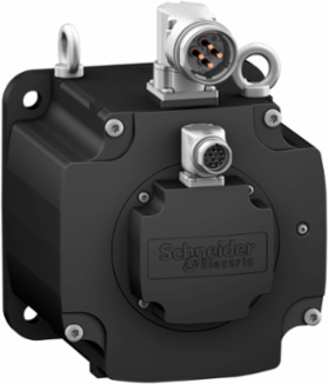

Schneider Electric BMH1902P31F2A Lexium 32 Servo Motor, 48 Nm Torque, 4000 rpm, 310 mm Length, IP65/IP67
Schneider Electric BMH1902P31F2A Lexium 32 Servo Motor, 48 Nm Torque, 4000 rpm, 310 mm Length, IP65/IP67
- MPN: BMH1902P31F2A
- PPN: SCH-BMH1902P31F2A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric stands out with its impressive torque of 48 Nm and a high rotation speed of 4000 rpm, making it suitable for demanding motion control applications. With a compact length of 310 mm, this motor is designed to fit into various automation and control environments while maintaining robust performance. Furthermore, its IP65/IP67 rating indicates exceptional protection against dust and moisture, ensuring reliable operation even in challenging conditions. Ideal for those in search of efficiency and durability in their motion control solutions, this servo motor exemplifies Schneider Electric's commitment to quality and innovation in the industry.
Specifications
- Torque
- 48 Nm continuous stall, 130.7 Nm peak stall
- Nominal Output Power
- 5900 W to 6070 W depending on variant
- Nominal Speed
- 2000 rpm to 2500 rpm depending on variant
- Maximum Current Irms
- 72 A
- Length
- 310 mm
- Shaft Length
- 80 mm
- Motor Flange Size
- 190 mm
- Number of Motor Poles
- 10
- Centring Collar Depth
- 4 mm
- Mounting Holes Diameter
- 14 mm
- Material
- Not specified
- Stator Inductance
- 3.86 mH at 20 °C
- Back EMF Constant
- 108.3 V/krpm at 120 °C
- Rotor Inertia
- 144.8 kg.cm²
- Maximum Axial Force
- 0.2 x Fr
- Holding Brake
- With holding brake, 80 N.m
- Type of Cooling
- Natural convection
- Rated Supply Voltage
- 480 V
- Electrical Connection
- Rotatable right-angled connectors
- Second Shaft
- Without second shaft end
- Net Weight
- 32.5 kg
- RoHS Compliance
- Yes, proactive compliance
- PVC Free
- Yes
Maximum Speed4000 rpm
Nominal Torque22.3 to 29 Nm depending on variant
Continuous Stall Current30.8 A
Maximum Permanent Current114 A
Shaft Diameter38 mm
Key Width70 mm
Number of Motor Stacks2
Centring Collar Diameter180 mm
Number of Mounting Holes4
Circle Diameter of the Mounting Holes215 mm
Stator Resistance0.15 Ohm at 20 °C
Stator Electrical Time Constant25.7 ms at 20 °C
Torque Constant1.56 N.m/A at 120 °C
Maximum Radial Force4200 N at 1000 rpm
IP Degree of ProtectionIP65 standard, IP67 with IP67 kit
Brake Pull-in Power40 W
Feedback TypeSingle turn SinCos Hiperface
PhaseThree phase
Mounting SupportInternational standard flange
Shaft EndKeyed
Country of OriginGermany (DE)
Mercury FreeYes
Warranty18 months
