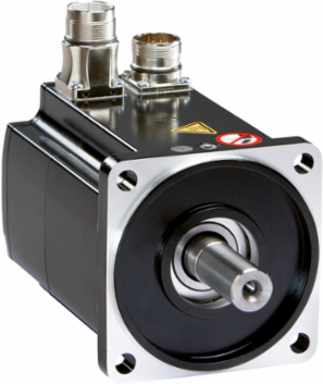

Schneider Electric BMH2053P11A1A Servo Motor Lexium 32, 84 Nm, 3800 rpm, 67 kg, IP54
Schneider Electric BMH2053P11A1A Servo Motor Lexium 32, 84 Nm, 3800 rpm, 67 kg, IP54
- MPN: BMH2053P11A1A
- PPN: SCH-BMH2053P11A1A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMH2053P11A1A Servo Motor is engineered for high-performance applications within the realm of automation and control. Offering a robust torque of 84 Nm and achieving speeds of up to 3800 rpm, this motor is suitable for a range of motion control needs, ensuring precise operation in demanding environments. With an IP54 rating, it provides a high level of protection against dust and moisture, making it reliable for industrial settings. This advanced servo motor from Schneider Electric stands out for its combination of efficiency and durability, positioning it as a vital component for modern automated systems.
Specifications
- Torque
- 84 N.m
- Peak Stall Torque
- 232 N.m
- Nominal Torque
- 52.2 N.m
- Maximum Mechanical Speed
- 3800 rpm
- Continuous Power
- 9.6 W
- Maximum Permanent Current
- 107.4 A
- Phase
- Three phase
- Maximum Axial Force
- 0.2 x Fr
- Weight
- 67 kg
- Shaft Length
- 80 mm (3.15 in)
- Centring Collar Diameter
- 180 mm (7.09 in)
- Mounting Support
- International standard flange
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Number of Motor Poles
- 10
- Feedback Type
- Single turn SinCos Hiperface
- Torque Constant
- 3.5 N.m/A 120 °C
- Rotor Inertia
- 190 kg.cm²
- Stator Inductance
- 6.9 mH 20 °C
- Type of Cooling
- Natural convection
- Compliance
- RoHS, Mercury free, PVC free, EU RoHS Pro-active compliance
- Warranty
- 18 months
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status
- Green Premium product
- Product Compatibility
- LXM32.D72N4 400...480 V three phase
- Second Shaft
- Without second shaft end
Continuous Stall Torque84 N.m
Nominal Output Power6500 W
Nominal Speed1200 rpm
Continuous Stall Current25.2 A
Maximum Current Irms72 A
Voltage480 V
Maximum Radial Force4500 N @ 1000 rpm, 3570 N @ 2000 rpm, 3120 N @ 3000 rpm
Length489 mm (19.25 in)
Shaft Diameter38 mm (1.50 in)
Key Width70 mm (2.76 in)
Centring Collar Depth4 mm (0.16 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Number of Motor Stacks3
Shaft EndKeyed
Speed Feedback Resolution131072 points/turn
Back EMF Constant218 V/krpm 120 °C
Stator Resistance0.32 Ohm 20 °C
Stator Electrical Time Constant21.6 ms 20 °C
IP Degree of ProtectionIP54
Product Or Component TypeServo motor
Environmental DisclosureENVPEP111049EN
China Rohs RegulationX
Mercury FreeYes
WeeeEU compliant disposal required
Range CompatibilityLexium 32
Device Short NameBMH
