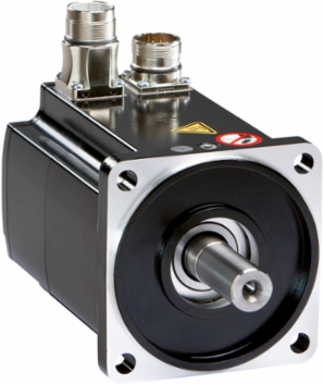

Schneider Electric BMH2053P11A2A Lexium 32 Servo Motor, 84 Nm, 3800 rpm, 3 Phase, IP54
- MPN: BMH2053P11A2A
- PPN: SCH-BMH2053P11A2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Lexium 32 Servo Motor from Schneider Electric stands out in the realm of automation and control with its robust design and exceptional performance specifications. Capable of delivering an impressive torque of 84 Nm and reaching speeds of 3800 rpm, this three-phase motor provides the reliability and efficiency essential for various motion control applications. With a protective rating of IP54, it is well-equipped to withstand dust and moisture, making it suitable for a range of industrial environments. This servo motor empowers seamless integration into automated systems, enhancing precision and responsiveness, which is crucial for modern manufacturing and process control.
Documentation & Downloads
Specifications
Additional
- Torque
- 84 N.m continuous, 232 N.m peak
- Nominal Torque
- 52.2 N.m
- Maximum Mechanical Speed
- 3800 rpm
- Maximum Axial Force
- 0.2 x Radial Force
- Continuous Stall Current
- 25.2 A
- Maximum Permanent Current
- 107.4 A
- Voltage
- 480 V Rated Supply Voltage
- Speed Feedback Resolution
- 131072 points/turn
- Rotor Inertia
- 190 kg.cm²
- Back EMF Constant
- 218 V/krpm
- Stator Inductance
- 6.9 mH at 20 °C
- Type of Cooling
- Natural convection
- Number of Motor Stacks
- 3
- Shaft Diameter
- 38 mm (1.50 in)
- Key Width
- 70 mm (2.76 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Centering Collar Diameter
- 180 mm (7.09 in)
- Mounting Support
- International standard flange
- Net Weight
- 67 kg (147.71 lb)
- Pvc Free
- Yes
- RoHS Compliance
- EU and China RoHS Pro-active compliance
- WEEE Compliance
- European Union waste disposal compliant
- Sustainable Offer Status
- Green Premium product
- Product Type
- Servo motor
- Range Compatibility
- Lexium 32
- Warranty
- 18 months
Nominal Output Power6500 W
Nominal Speed1200 rpm
Maximum Radial Force4500 N at 1000 rpm
Continuous Stall Torque84 N.m
Maximum Current Irms72 A
Continuous Power9.6 W
PhaseThree phase
Feedback TypeSingle turn SinCos Hiperface
Torque Constant3.5 N.m/A
Stator Resistance0.32 Ohm at 20 °C
Stator Electrical Time Constant21.6 ms at 20 °C
Number of Motor Poles10
Maximum Axial Force0.2 x Radial Force
Shaft Length80 mm (3.15 in)
Shaft EndKeyed
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Centering Collar Depth4 mm (0.16 in)
Electrical ConnectionRotatable right-angled connectors
IP Degree of ProtectionIP54
Mercury FreeYes
Reach RegulationContains Substances of Very High Concern above threshold
China RoHS RegulationCompliant
Country of OriginGermany (DE)
Device Short NameBMH
Product CompatibilityLXM32.D72N4 400...480 V three phase
