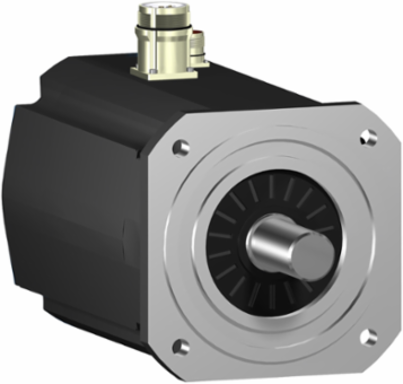

Schneider Electric SH32051P02F1200 Servo Motor 36.9 Nm, 3-Phase, IP65/IP67, 3.8k RPM
- MPN: SH32051P02F1200
- PPN: SCH-SH32051P02F1200
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for precision and reliability, the Schneider Electric SH32051P02F1200 servo motor is an exceptional solution for your automation and control needs. With a robust torque rating of 36.9 Nm and designed for 3-phase systems, this motor achieves impressive speeds of up to 3.8k RPM, making it ideal for high-performance applications. Built to withstand demanding environments, it boasts an IP65/IP67 rating, ensuring protection against dust and water ingress. This servo motor is not only a powerful performer but also a dependable component for efficient motion control in industrial settings.
Documentation & Downloads
Specifications
Additional
- Torque
- 36.9 N.m continuous stall torque, 110 N.m peak stall torque
- Nominal Torque
- 31.9 N.m (115 V single phase), 27 N.m (230 V single phase), 17.5 N.m (400 V three phase), 13.8 N.m (480 V three phase)
- Maximum Speed
- 3800 rpm
- Maximum Current Irms
- 87.2 A
- Rated Supply Voltage
- 115...480 V
- Shaft Diameter
- 38 mm (1.50 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Centring Collar Diameter
- 180 mm (7.09 in)
- Net Weight
- 38.6 kg (85.10 lb)
- Electrical Connection
- Straight connector
- Material
- N/A
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Holding Brake
- With
- Torque Constant
- 1.6 N.m/A (120 °C)
- Number of Motor Poles
- 5
- Stator Resistance
- 0.3 Ohm
- Maximum Radial Force
- 3730 N (1000 rpm), 2960 N (2000 rpm), 2580 N (3000 rpm)
- Type of Cooling
- Natural convection
- Weee
- Must be disposed according to EU waste collection regulations
- Device Short Name
- SH3.....P
- Warranty
- 18 months
Nominal Output Power2510 W (115 V single phase), 4240 W (230 V single phase), 5500 W (400 V three phase), 5200 W (480 V three phase)
Nominal Speed750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
Continuous Stall Current21 A
PhaseThree phase
Length370.5 mm (14.59 in)
Shaft Length80 mm (3.15 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Centring Collar Depth4 mm (0.16 in)
Shaft EndSmooth shaft
Mounting SupportInternational standard flange
IP Degree of ProtectionMotor IP65, Shaft bushing IP65, Housing IP67 (EN/IEC 60034-5)
Speed Feedback Resolution128 periods
Holding Torque80 N.m (708.06 lbf.in)
Back EMF Constant104 V/krpm (20 °C)
Rotor Inertia87.4 kg.cm²
Stator Inductance8.7 mH
Maximum Axial Force740 N
ComplianceRoHS Exemption: Yes, EU RoHS Pro-active compliance, China RoHS, Mercury Free, PVC Free, REACh, California Prop 65 Compliant
Range CompatibilityPacDrive 3
Product Or Component TypeServo motor
Environmental DisclosureENVPEP111049EN
